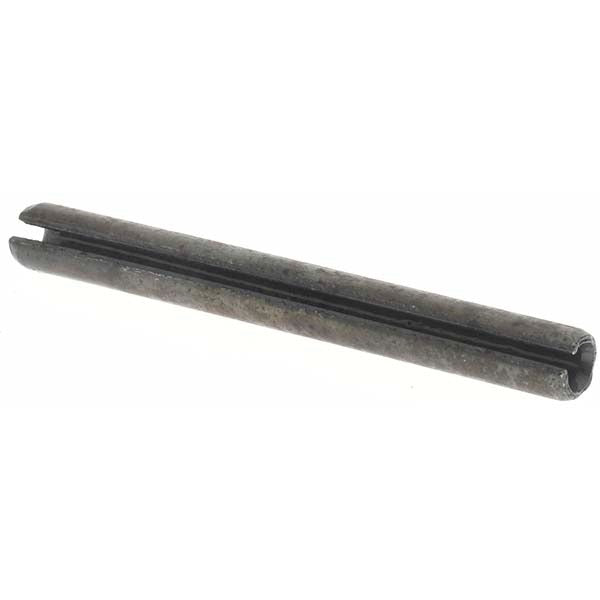

Value Collection C57700908 Slotted Spring Pin 2 in 7/32 in

Product Description

The VALUE COLLECTION C57700908 is a slotted spring pin designed for use in mechanical assemblies requiring a reliable, removable fastening solution. At 2 inches in overall length and 7/32 inch in diameter, this pin is manufactured from 1070-1090 alloy steel with an uncoated finish. Slotted spring pins compress on insertion to grip the bore wall, distributing load across the slot and providing consistent retention force. They are installed by maintenance technicians, machinists, and mechanical assemblers working across a range of industrial and general-purpose applications.

This slotted spring pin is suited for use in jigs, fixtures, hinges, linkages, and mechanical assemblies where a standard-duty, inch-series pin is required. The 1070-1090 alloy steel construction provides adequate shear strength for general-purpose industrial use. The uncoated surface is appropriate for dry or lightly lubricated installations. These pins are commonly used in both original equipment assembly and field repair scenarios where quick disassembly and reassembly may be needed.

Key Features

• Slotted design compresses on insertion for consistent bore retention
• 2 inches overall length in the inch system of measurement
• 7/32 inch nominal diameter for standard inch-series bores
• 1070-1090 alloy steel construction for general-purpose shear strength
• Uncoated finish suitable for dry or lightly lubricated assemblies
• Sold in packages of 50 with a minimum order quantity of 1

Compatibility

Designed as a general-purpose slotted spring pin for standard inch-series mechanical assemblies requiring a 7/32 inch diameter, 2 inch long fastener.

Installation Notes

Slotted spring pins are installed by pressing or driving the pin into a drilled bore of the appropriate nominal diameter using a pin punch and hammer or an arbor press. Ensure the bore is clean and free of burrs before installation. The slot should be oriented to face the direction of applied load when possible to maximize retention. Wear appropriate eye protection during installation and removal.
