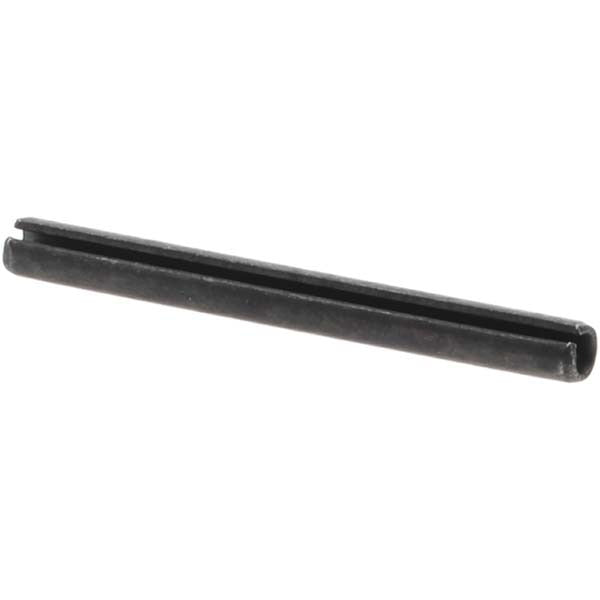

Value Collection C57700111-100 Slotted Spring Pin

Product Description

The VALUE COLLECTION C57700111-100 is a slotted spring pin designed for use in mechanical assemblies requiring a reliable, press-fit fastening solution. Manufactured from 1070-1090 alloy steel with a black oxide finish, this pin measures 0.0938 inches in diameter and 1 inch in overall length. The slotted design allows the pin to compress during installation and exert radial spring force against the bore wall, creating a secure, vibration-resistant fit without the need for additional fasteners or adhesives. At 0.01 pounds, this is a lightweight component suited for high-volume mechanical assembly work across a range of industrial and trade applications.

This slotted spring pin is used in mechanical assemblies where a quick-install, self-retaining pin is required. Typical applications include shaft-to-hub connections, linkage assemblies, pivot points, and component alignment in machinery, equipment panels, and fabricated assemblies. The 3/32-inch fractional diameter makes it a common size across light-duty mechanical systems. This item is sold individually but requires a minimum order quantity of 100 units, making it appropriate for shop stock or production line use.

Key Features

• Slotted design compresses on insertion for a spring-loaded, self-retaining fit
• 1070-1090 alloy steel construction for hardness and durability in mechanical applications
• Black oxide finish provides mild corrosion resistance and reduces surface reflectivity
• 0.0938 inches (3/32 inch) diameter fits standard fractional bore applications
• 1 inch overall length suits shallow-to-mid-depth pin hole configurations
• Inch measurement system; does not meet military specifications

Compatibility

Designed as a standard slotted spring pin for use in fractional-inch bore assemblies requiring a 3/32-inch diameter, 1-inch long press-fit pin across general industrial and mechanical applications.

Installation Notes

Slotted spring pins are typically installed by maintenance technicians and mechanical assemblers using a pin punch and hammer or an arbor press. Ensure the receiving bore diameter and depth are within tolerance before driving the pin to avoid deformation or bore damage. Always wear appropriate eye protection when driving pins manually. Remove load and de-energize equipment before servicing any assembly that uses these pins.
