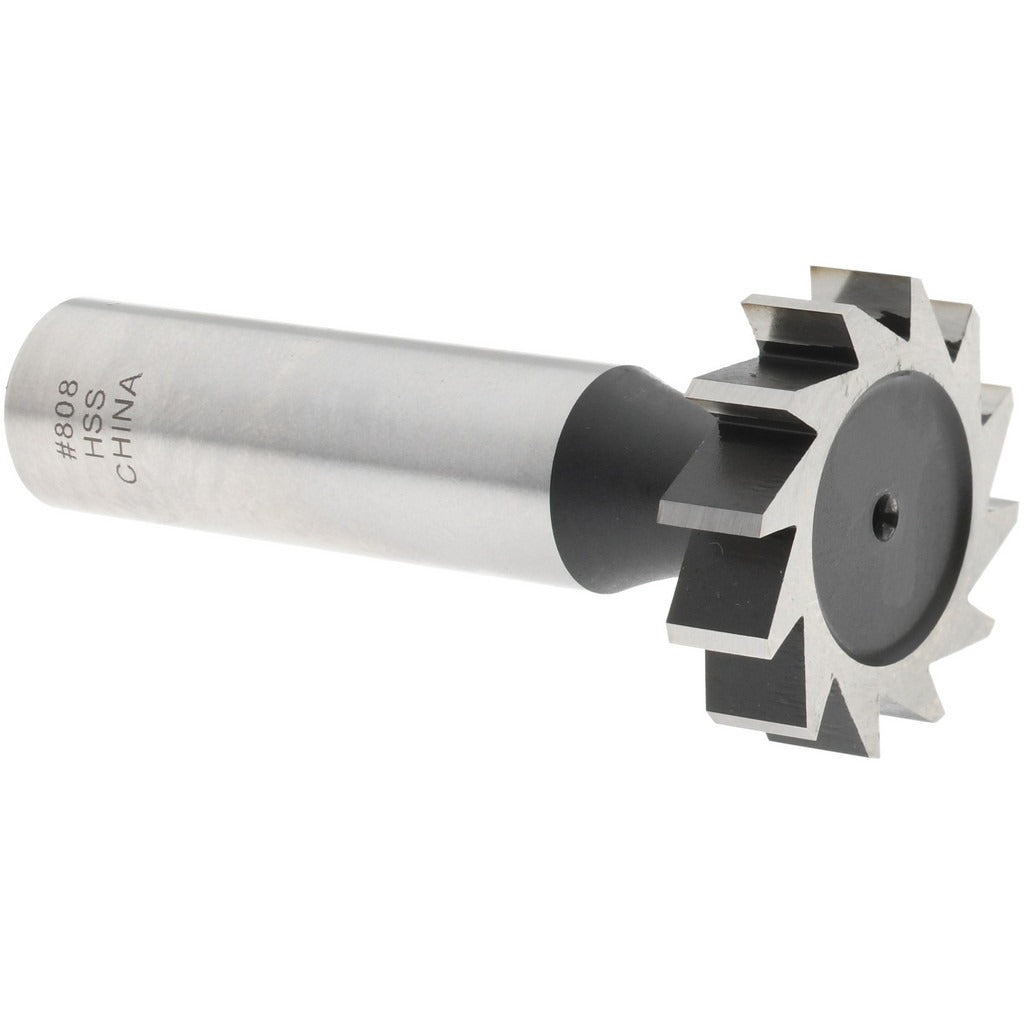

Value Collection C1100808 Woodruff Keyseat Cutter

Product Description

The VALUE COLLECTION C1100808 is a Woodruff keyseat cutter designed for milling semicircular keyways in shafts to ANSI standard 808. Built from high speed steel with a bright, uncoated finish, it delivers reliable cutting performance on a range of common shaft materials. The cutter measures 1 inch in cut diameter with a 0.25 inch cut width, a 0.5 inch shank diameter, and an overall length of 2.25 inches. Twelve straight teeth provide clean, consistent cuts with minimal chatter. This tool is sized to meet ANSI 808 and Old Standard 15 specifications, making it a direct-fit option for standard Woodruff key applications in machining and maintenance operations.

This cutter is suited for use in milling machines and machining centers where Woodruff keyseats must be cut into drive shafts, spindles, and similar components. It is commonly used in precision machining shops, maintenance and repair operations, and production environments where ANSI-standard keyway dimensions are required. The straight tooth configuration is appropriate for cutting softer metals and general-purpose keyway work in both horizontal and vertical milling setups.

Key Features

• High speed steel construction for durable cutting performance
• Straight tooth configuration for clean, consistent keyseat cuts
• 12 teeth for smooth material removal and surface finish
• Bright, uncoated finish suitable for general-purpose milling applications
• Meets ANSI 808 standard and Old Standard 15 dimensions
• 1 inch cut diameter and 0.25 inch cut width for standard Woodruff key sizing

Compatibility

Designed as a direct replacement or standard-fit Woodruff keyseat cutter conforming to ANSI 808 and Old Standard 15 specifications for use in standard milling machine setups.

Installation Notes

This cutter is installed and operated by machinists using horizontal or vertical milling machines. Secure the 0.5 inch shank in an appropriate collet or arbor before operation and confirm tool runout is within acceptable tolerance. Always power down and lock out the machine before changing or inspecting the cutter. Follow applicable shop safety procedures and machine manufacturer guidelines during setup and operation.
