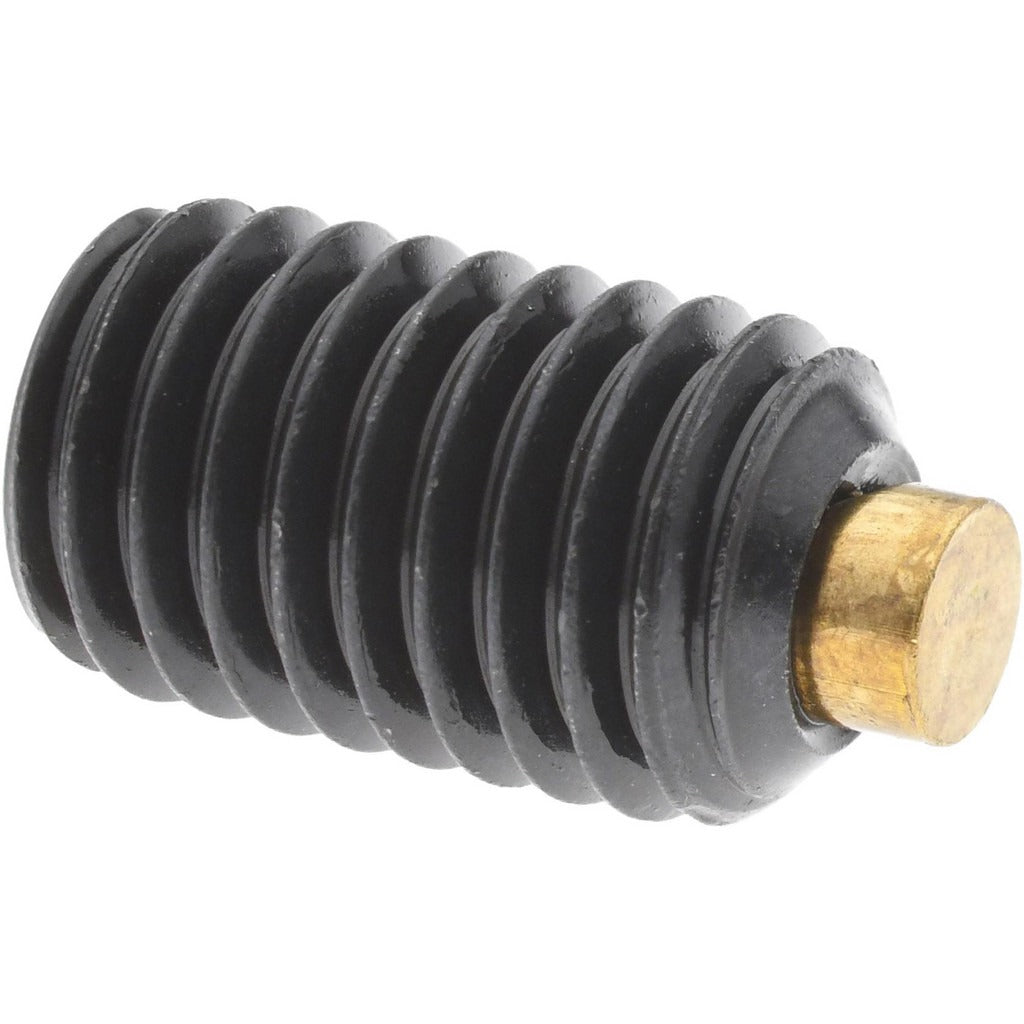

Value Collection BT-M10-16MM-AS Set Screw M10 16mm

Product Description

The VALUE COLLECTION BT-M10-16MM-AS is an M10 x 16 mm set screw designed for mechanical assemblies where a non-marring tip is required. The fastener features a hex drive and a soft brass tip point that protects shaft surfaces from damage during tightening. Manufactured from Grade 8 alloy steel, it delivers high tensile strength suitable for demanding industrial and trade applications. The full 16 mm length is threaded, providing consistent grip along the entire engagement. This set screw is installed by machinists, millwrights, and mechanical contractors working on shafts, collars, pulleys, and similar components.

This set screw is suited for shaft-locking applications in residential and commercial mechanical systems, including HVAC equipment, pumps, fan assemblies, and conveyor components. The brass soft tip is particularly useful when securing hardened or finished shafts where a standard cup-point or cone-point screw would cause unwanted surface damage. Typical installations include set-screw collars, shaft couplings, and hub assemblies that require periodic adjustment or removal.

Key Features

• M10 x 16 mm fully threaded length for consistent shaft engagement
• Soft brass tip point prevents marring or galling on shaft surfaces
• Grade 8 alloy steel construction provides high tensile and shear strength
• Hex drive for standard hex key installation
• Full-thread design maximizes holding force within the collar or hub

Compatibility

Designed as an OEM-style replacement or service fastener for M10 threaded set-screw applications in mechanical shaft-locking assemblies.

Installation Notes

Installation is performed by qualified mechanical or maintenance technicians using a properly sized hex key or Allen driver. De-energize and lock out any rotating equipment before servicing shaft collars or set-screw assemblies in accordance with applicable OSHA lockout/tagout procedures. Tighten to the torque specification provided by the equipment or collar manufacturer. Do not substitute brass-tip set screws in high-impact or high-vibration applications unless the equipment manufacturer explicitly permits soft-tip fasteners.
