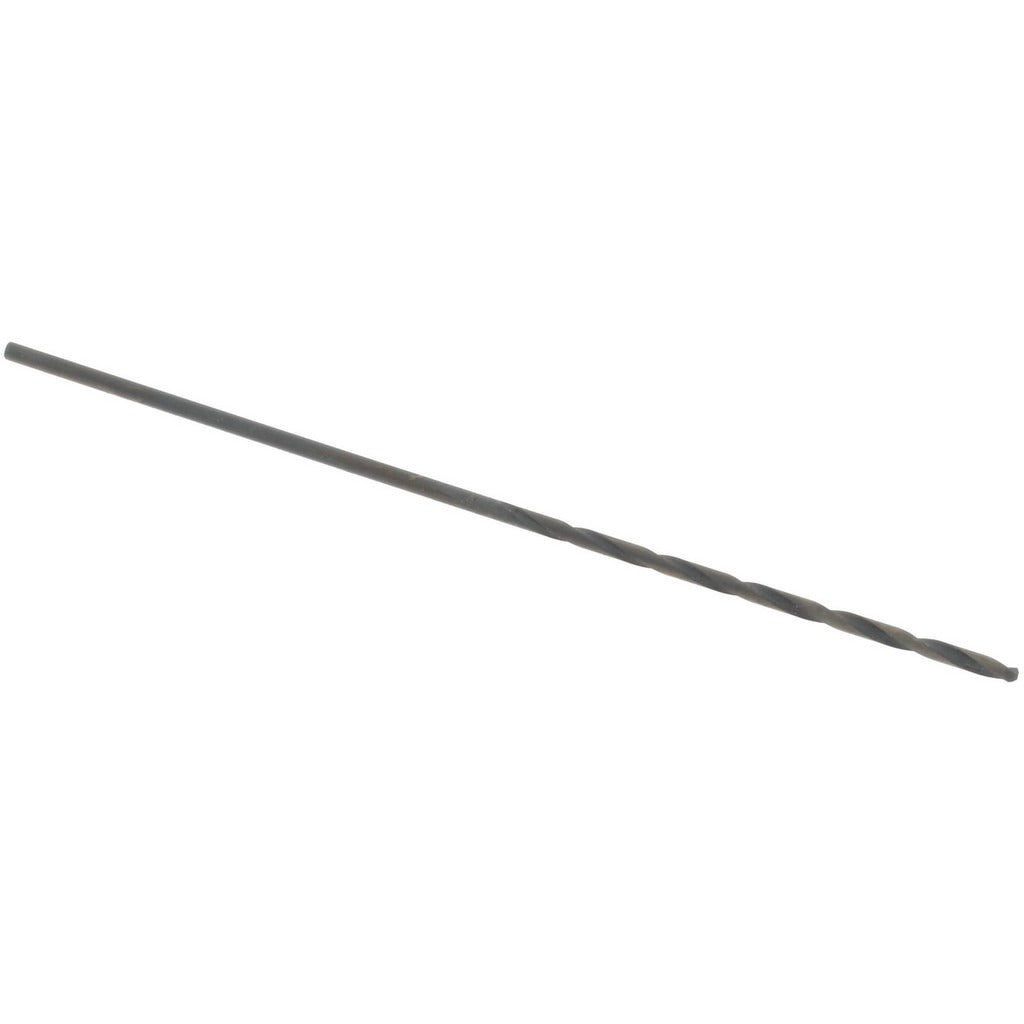

Value Collection BS38N0061 Taper Length Drill Bit Hss

Product Description

The VALUE COLLECTION BS38N0061 is a taper length twist drill bit designed for precision drilling in metalworking and general-purpose machining applications. Built from high-speed steel (HSS) with a black oxide finish, this bit offers increased lubricity and moderate corrosion resistance during cutting operations. It measures 0.0390 inches in diameter with a 118-degree standard point angle, making it suited for drilling into a wide range of ferrous and non-ferrous materials. The web-thinned, tapered web configuration reduces thrust at entry and improves chip evacuation, which is especially useful when drilling small-diameter holes requiring close tolerances. Licensed tradespeople and machinists working in fabrication, HVAC equipment assembly, and electrical panel work will find this bit a dependable general-purpose choice.

This taper length drill bit is appropriate for use in hand-held drill presses, bench-top drill presses, and CNC machining centers where a straight-cylindrical shank is compatible. The taper length body provides additional reach compared to jobber-length bits, making it useful in applications where hole depth exceeds standard jobber-length capacity. The right-hand spiral flute design is standard for conventional drilling operations. General-purpose grade HSS construction makes this bit suitable for light production and maintenance drilling in shop, field, and light industrial environments.

Key Features

• 0.0390 inch diameter corresponds to Wire Gauge size 61
• 118-degree standard point angle for general-purpose drilling on ferrous and non-ferrous materials
• HSS construction provides strength and heat resistance for metal drilling
• Black oxide finish improves lubricity and reduces friction during cutting
• Web-thinned tapered web reduces entry thrust and improves chip flow
• Straight-cylindrical shank compatible with standard drill chucks
• Right-hand spiral flute for conventional forward-rotation drilling

Compatibility

Designed as a general-purpose taper length drill bit compatible with standard drill chucks accepting a straight-cylindrical shank. Fits hand-held drills, drill presses, and CNC equipment configured for right-hand cutting tools.

Installation Notes

Installation and use of this drill bit should be performed by qualified machinists or tradespeople following applicable shop safety procedures and machine guarding requirements. Secure the shank fully in the chuck and verify concentricity before operation. Always power down and de-energize the machine before changing bits. Use appropriate cutting fluid or lubricant when drilling ferrous metals to extend bit life and maintain hole quality.
