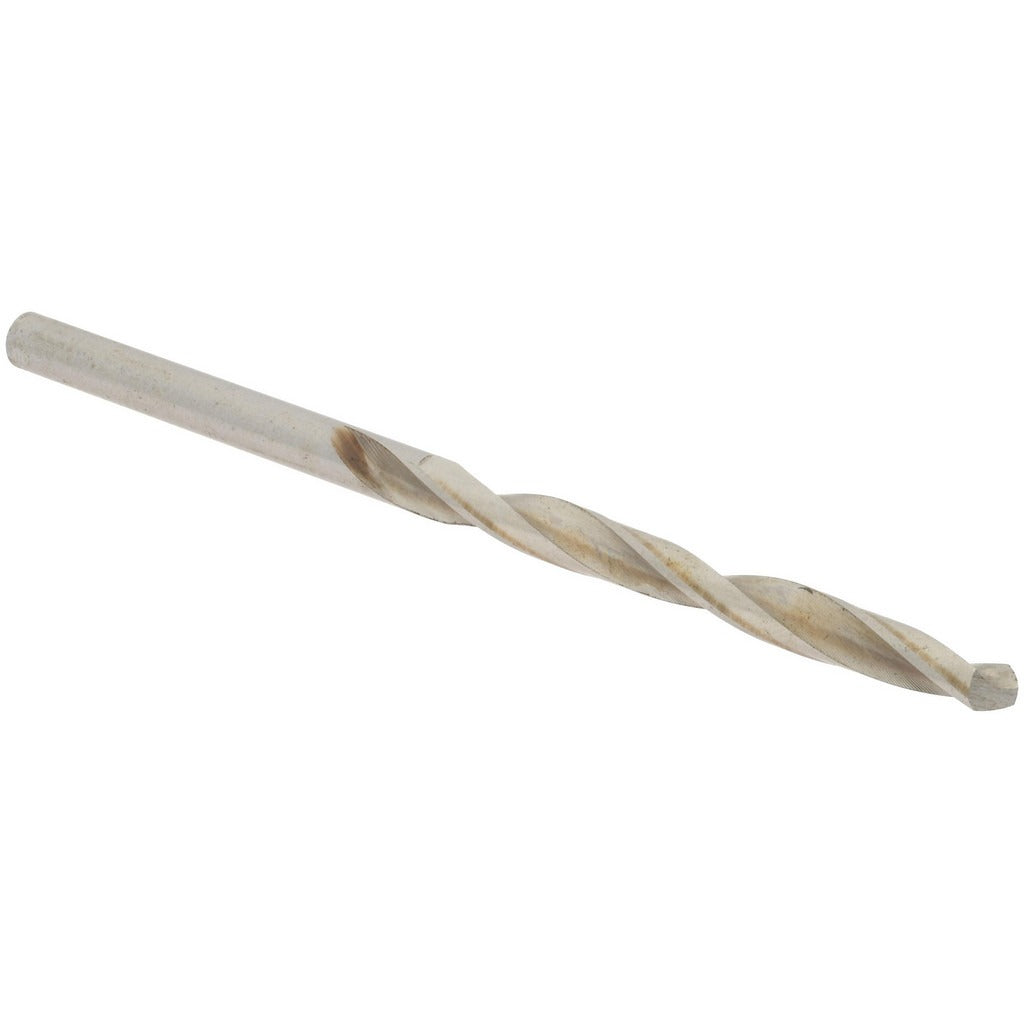

Value Collection BS27N0016 No. 16 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION BS27N0016 is a high speed steel jobber-length drill bit in wire gauge size No. 16, equivalent to 0.1770 inches in diameter. It features a 130-degree split-point angle with web thinning for improved centering and reduced walking on entry. The slow spiral flute geometry is optimized for aluminum and other non-ferrous materials, promoting efficient chip evacuation at higher feed rates. The bright, uncoated finish indicates an uncoated HSS substrate suitable for general-purpose drilling applications. With an overall length of 3.375 inches and a flute length of 2.1875 inches, it fits standard drill chucks and is commonly used by machinists, maintenance technicians, and fabrication tradespeople.

This drill bit is sized for wire gauge No. 16 work, covering the 0.150 to 0.200 inch decimal range. It is well suited for drilling aluminum, brass, copper, and other non-ferrous metals in light fabrication, maintenance, and repair settings. The straight cylindrical shank at 0.1770 inches diameter seats securely in standard keyless or keyed drill chucks. The ANSI-specification construction makes it a reliable general-purpose choice for bench drill presses, hand drills, and mill setups where consistent hole quality in softer metals is required.

Key Features

• Wire size No. 16 — 0.1770 inch diameter for precise hole sizing
• 130-degree point angle with web thinning reduces walking and improves entry accuracy
• Slow spiral flute geometry optimized for aluminum and non-ferrous workpiece materials
• Bright uncoated HSS construction — ANSI specification, general-purpose grade
• Straight cylindrical shank fits standard drill chucks without adapters
• Two-flute design promotes chip clearance in ductile, gummy materials

Compatibility

Designed as a general-purpose jobber drill bit for use with standard keyed or keyless drill chucks accepting straight shanks up to 0.1770 inches in diameter, compatible with bench drill presses, handheld drills, and milling machine setups used in metalworking and maintenance applications.

Installation Notes

Installation and use should be performed by qualified machinists or maintenance technicians familiar with drilling operations. Secure the workpiece firmly before drilling and ensure the chuck is tightened fully on the straight shank before operation. When drilling aluminum or non-ferrous metals, use appropriate cutting fluid or lubricant to extend bit life and improve hole finish. Inspect the cutting edges before each use and replace the bit if chipping or dulling is observed.
