Value Collection BS26N0074 No. 74 Jobber Drill Bit Hss

Product Description

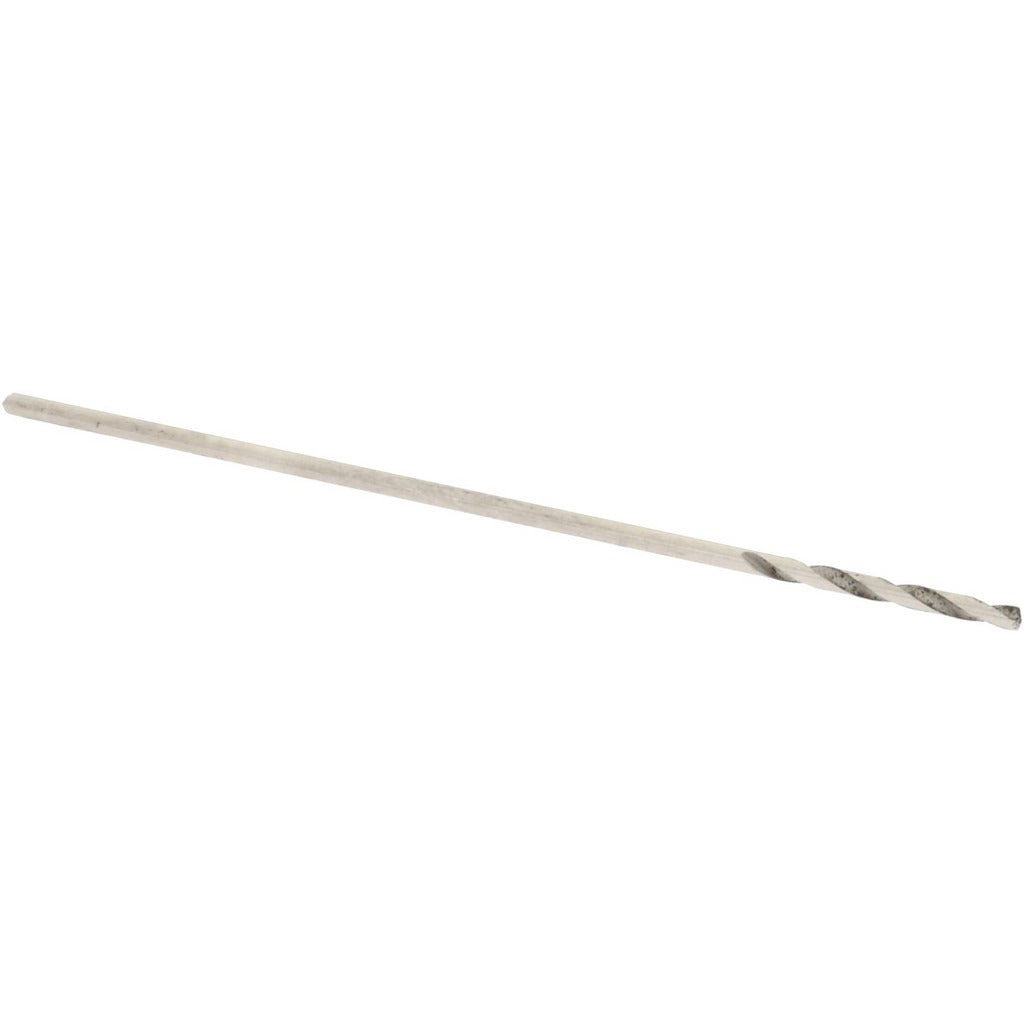

The VALUE COLLECTION BS26N0074 is a No. 74 wire-gauge jobber drill bit machined from high speed steel (HSS) for general-purpose drilling in metal, aluminum, non-ferrous materials, and wood. The bit measures 0.0225 inches in diameter with a 1-inch overall length and a 0.25-inch flute length. A 140-degree split-point geometry reduces walking on entry and requires less thrust than a standard 118-degree point. The bright, uncoated finish suits general shop use and makes wear patterns easy to spot during inspection. Two fast-spiral flutes provide efficient chip evacuation in the small-diameter bore. Licensed machinists, HVAC technicians, electricians, and plumbers reach for wire-gauge bits like this when drilling pilot holes, clearance holes, or precise small-diameter passages in sheet metal or structural components.

The BS26N0074 is sized to the No. 74 wire gauge standard, corresponding to 0.0225 inches. This size is common in precision sheet-metal work, instrument panel fabrication, and small-fastener pilot hole applications. The straight cylindrical shank seats directly into standard drill chucks without adapters. The bit conforms to ANSI specification and is sold individually, though the minimum order quantity is 12 units, making it practical for shop stock or field kit replenishment where small-gauge bits see frequent replacement.

Key Features

• No. 74 wire size, 0.0225-inch diameter for precision small-bore applications
• 140-degree point angle reduces walking and lowers feed-force requirements
• Fast-spiral, two-flute geometry promotes efficient chip removal in shallow holes
• Web-thinned, tapered web construction improves cutting performance at small diameters
• High speed steel construction handles steel, aluminum, non-ferrous alloys, and wood
• Bright uncoated finish; no coating to flake or obscure wear on small-diameter cutting edges

Compatibility

Designed as a general-purpose OEM-style replacement or stock bit for standard drill chucks accepting straight cylindrical shanks; suitable for use in benchtop drill presses, hand drills, and CNC tooling setups that accommodate 0.0225-inch shank diameters.

Installation Notes

Wire-gauge drill bits are installed by licensed machinists or skilled tradespeople familiar with small-diameter tooling. Secure the straight shank firmly in a properly sized collet or keyless chuck before operation to prevent runout that can snap bits at this diameter. Always power down and de-energize the drilling machine before changing tooling. Use appropriate cutting fluid on steel workpieces to extend tool life and maintain dimensional accuracy.
