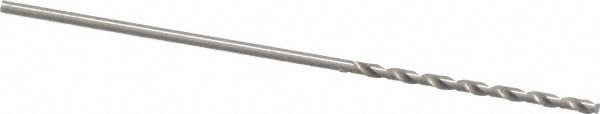

Value Collection BS26N0065 No 65 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION BS26N0065 is a No. 65 wire gauge jobber-length drill bit ground from high speed steel with a bright uncoated finish. It cuts a 0.0350-inch diameter hole and features a 140-degree split-point tip that starts on contact and reduces walking on entry. The fast spiral flute design clears chips efficiently at higher feed rates. At 1.5 inches overall length with a 0.625-inch flute, this is a compact bit suited for precision drilling in tight clearances. Machinists, tool-and-die technicians, and general metalworking shops are the primary users.

This bit is sized for small-hole work in steel, aluminum, non-ferrous metals, and wood. Typical applications include tapping prep holes, clearance holes for small fasteners, instrument panel drilling, and PCB fixture work. The straight cylindrical shank seats directly in standard drill chucks, collets, and CNC tool holders with no adapter required. The web-thinned, tapered web geometry reduces thrust load, which is especially useful when drilling thin sheet stock or when spindle torque is limited.

Key Features

• No. 65 wire size, 0.0350-inch diameter for precision small-hole drilling
• 140-degree point angle with web thinning reduces thrust and improves self-centering
• Fast spiral flute promotes efficient chip evacuation in steel and non-ferrous materials
• High speed steel construction handles general-purpose metalworking applications
• Bright uncoated finish — regrindable and compatible with standard cutting fluids
• Straight cylindrical shank fits standard drill chucks and collets without adapters
• ANSI specification compliant for consistent dimensional tolerances

Compatibility

Designed for general-purpose use in steel, aluminum, non-ferrous metals, and wood. Compatible with any drill press, CNC machining center, or hand drill equipped with a chuck or collet sized for a 0.0350-inch straight shank.

Installation Notes

Secure the workpiece before drilling to prevent rotation or movement. Ensure the chuck or collet is fully tightened and the bit is seated straight to avoid deflection at this small diameter. Apply a suitable cutting fluid when drilling steel to extend edge life and reduce heat buildup. Replace or regrind the bit at the first sign of dulling — small-diameter HSS bits are susceptible to breakage if run with a worn edge.
