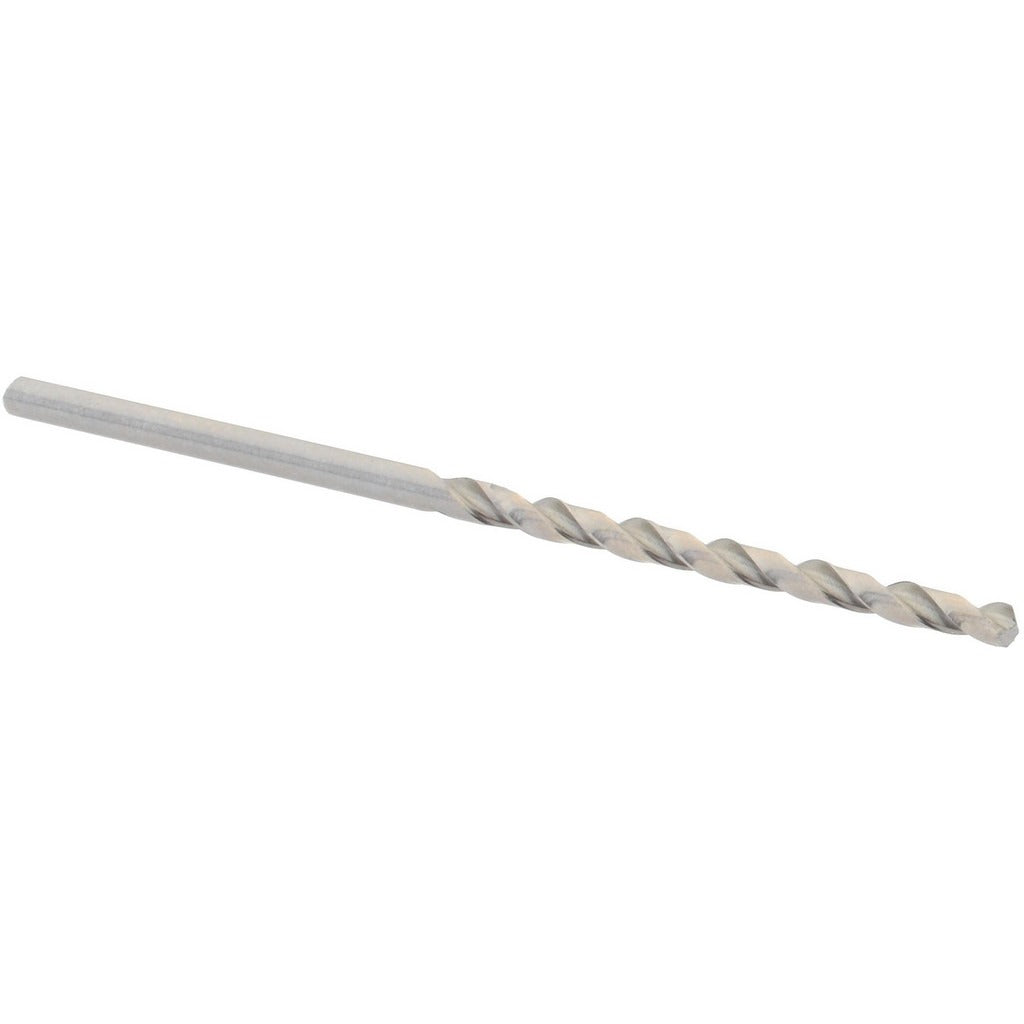

Value Collection BS26N0046 No. 46 Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION BS26N0046 is a No. 46 wire-gauge jobber-length drill bit designed for general-purpose drilling in metal, aluminum, non-ferrous materials, and wood. Machined from high speed steel (HSS) with a bright, uncoated finish, this bit measures 0.0810 inches in diameter and 2.125 inches in overall length. The 140-degree split point reduces walking on entry and allows cleaner penetration without a center punch in many applications. A fast spiral flute design promotes efficient chip evacuation, keeping the cutting edge cooler during operation. Web-thinned construction with a tapered web further reduces thrust requirements at the point.

This bit is suited for use in hand drills, drill presses, and CNC drilling operations where wire-gauge sizing is specified. The No. 46 diameter (0.0810 inches) is commonly used in light metalworking, electrical work, and precision assembly tasks requiring small-diameter through-holes in steel and aluminum stock. It is a right-hand cutting bit with a straight cylindrical shank compatible with standard three-jaw chucks. The 1.125-inch flute length accommodates typical jobber-depth holes in this size range.

Key Features

• No. 46 wire gauge diameter: 0.0810 inches
• 140-degree point angle for reduced walking and cleaner entry
• Fast spiral flute with web-thinned, tapered web construction for lower thrust and faster chip clearing
• High speed steel construction rated for steel, aluminum, non-ferrous metals, and wood
• Bright uncoated finish — standard general-purpose HSS configuration
• Right-hand cutting, straight cylindrical shank fits standard chuck sizes
• ANSI specification designation

Compatibility

Designed as a general-purpose jobber drill bit for use in any standard drill press, hand drill, or CNC spindle accepting a straight-shank bit with a 0.0810-inch shank diameter. Suitable for drilling steel, aluminum, non-ferrous metals, and wood per ANSI standards.

Installation Notes

Installation is performed by machinists, tool-and-die technicians, electricians, and general tradespeople using standard drill equipment. Secure the straight shank firmly in a three-jaw chuck before operation and confirm chuck runout is within tolerance for small-diameter bits to prevent bit breakage. Always reduce feed pressure near breakthrough to avoid grabbing. For drilling metals, use appropriate cutting fluid to extend bit life, especially at sustained duty cycles.
