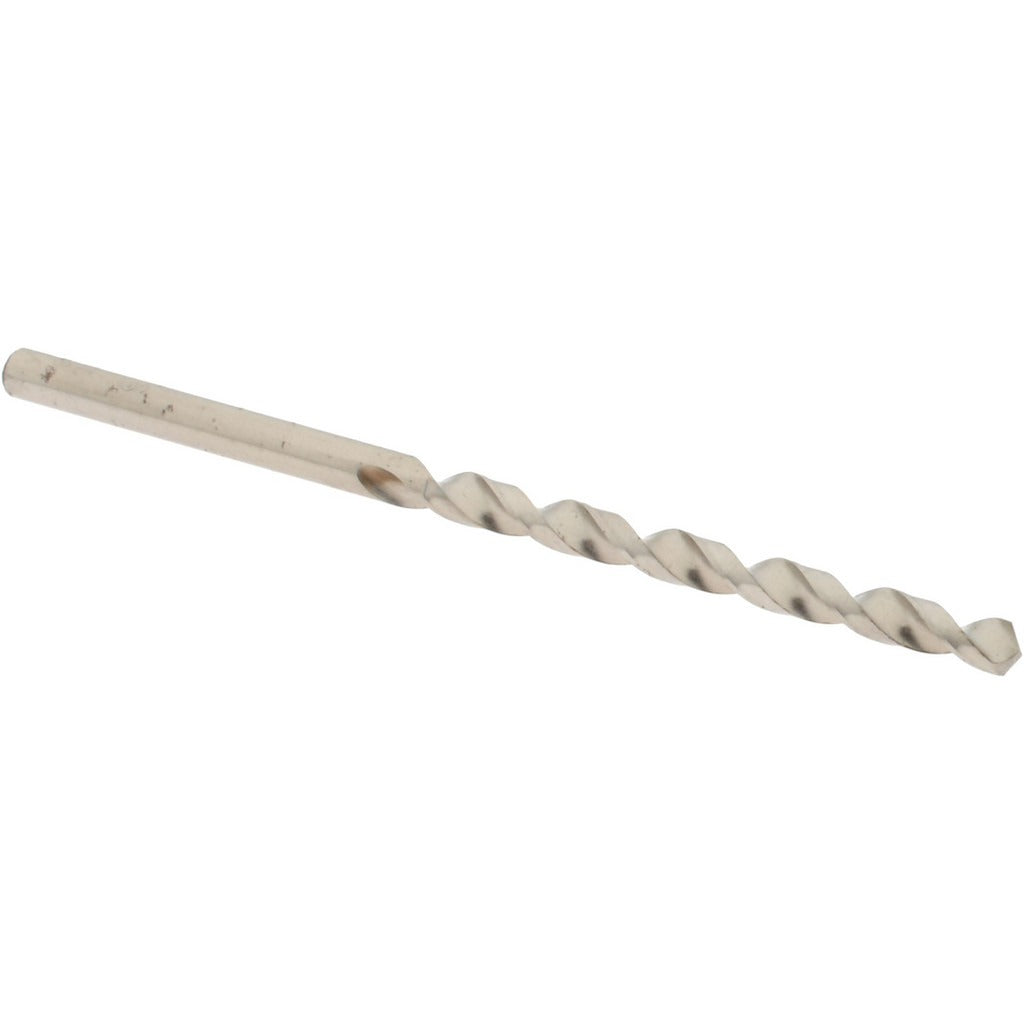

Value Collection BS26N0026 Jobber Drill Bit Wire 26 Hss

Product Description

The VALUE COLLECTION BS26N0026 is a wire gauge size 26 jobber-length drill bit machined from high speed steel (HSS) and left in a bright, uncoated finish. It features a 140-degree split point geometry with web thinning on a tapered web, which helps the bit self-center on entry and reduces thrust force when drilling into steel, aluminum, non-ferrous metals, and wood. The straight cylindrical shank measures 0.1470 inches in diameter, matching the bit diameter for direct chuck clamping. With an overall length of 3 inches and a fast spiral flute design, this bit is suited for general-purpose production and maintenance drilling in shop and field environments.

This bit is appropriate for metalworking, fabrication, and general maintenance applications where a wire gauge 26 hole diameter of 0.1470 inches is required. The fast spiral flute configuration promotes efficient chip evacuation, making it effective in softer metals and wood as well as mild steel. Machinists, pipefitters, electricians, and maintenance technicians regularly reach for jobber bits in this size range for layout drilling, pilot holes, and light production work. Coolant-through is not supported on this bit.

Key Features

• Wire size 26 diameter — 0.1470 inches decimal equivalent
• 140-degree standard point angle with web thinning for reduced thrust and self-centering entry
• Fast spiral flute with tapered web configuration for efficient chip clearance
• High speed steel construction rated for steel, aluminum, non-ferrous metals, and wood
• Bright uncoated finish — no coating buildup to affect hole tolerance in close-tolerance applications
• Right-hand cutting, straight cylindrical shank, ANSI specification designation

Compatibility

Designed as a general-purpose jobber drill bit suitable for use in standard three-jaw drill chucks, keyed chucks, and keyless chucks that accept a 0.1470-inch straight shank.

Installation Notes

Install this bit in a properly sized drill chuck and tighten securely before operation — a loose shank in the chuck can cause bit walk and damage the workpiece. Secure all workpieces in a vise or fixture before drilling; never hold small parts by hand. Use appropriate cutting fluid when drilling steel to extend tool life and maintain hole quality. Inspect the cutting edges before each use and replace the bit if the point shows signs of heat discoloration or chipping.
