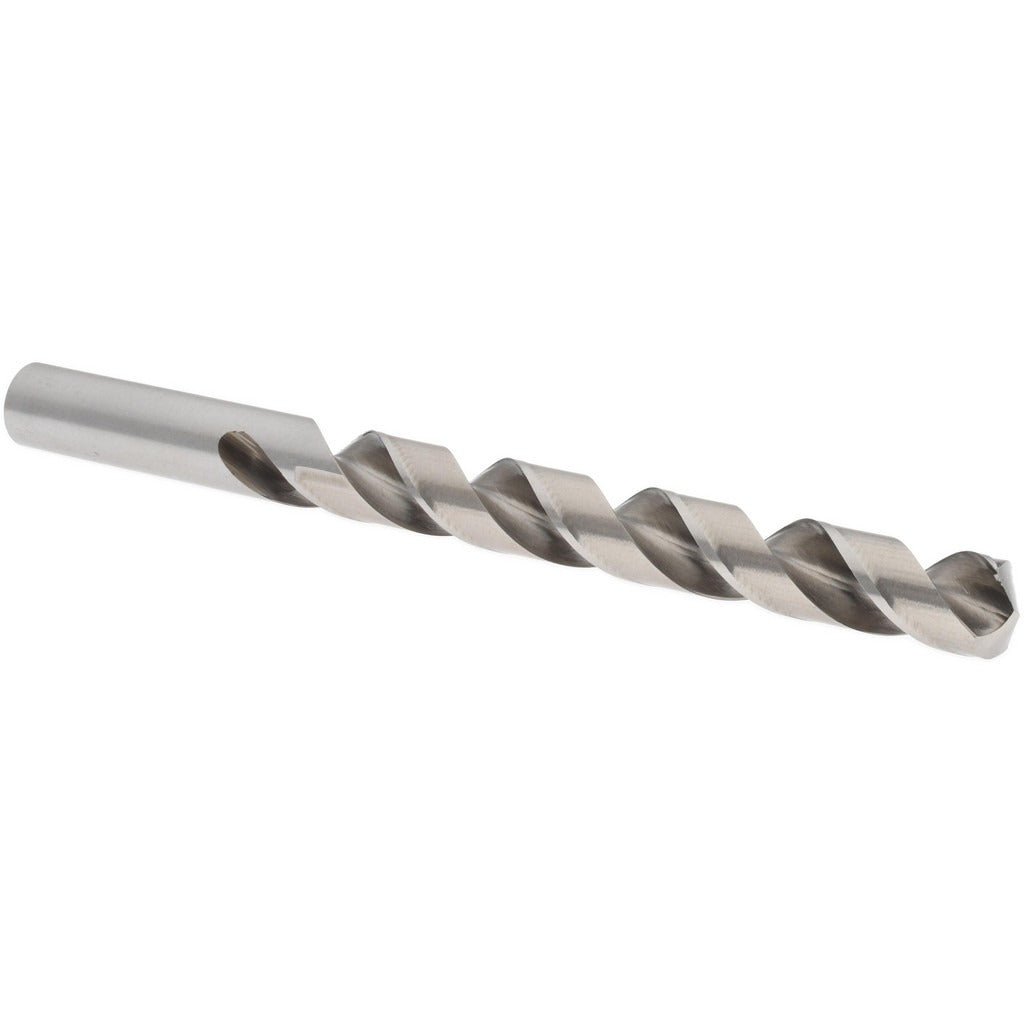

Value Collection BS2600032 1/2 in Hss Jobber Drill Bit

Product Description

The VALUE COLLECTION BS2600032 is a 1/2 inch diameter jobber-length drill bit ground from high speed steel (HSS) with a bright, uncoated finish. It features a 140-degree split-point angle with web thinning on a tapered web, which reduces walking on entry and lowers thrust required to penetrate the workpiece. The fast spiral flute geometry clears chips efficiently during through-hole drilling. Overall length is 6 inches, with a 4.5 inch flute length and a straight cylindrical shank. This is a general-purpose, right-hand cutting drill bit sold individually and suited for installation by machinists, pipefitters, HVAC technicians, electricians, and plumbers drilling pilot or clearance holes in the field or shop.

The BS2600032 is designed for drilling steel, aluminum and other non-ferrous metals, and wood. The fast spiral geometry makes it particularly effective on softer metals and non-ferrous materials where aggressive chip evacuation prevents material from loading the flute. The straight shank accepts standard three-jaw keyed or keyless drill chucks commonly found on portable drills and drill presses. No coolant-through capability is required or provided, making it well suited for general field and bench use without dedicated coolant systems.

Key Features

• 1/2 inch (0.5000 inch) diameter with a straight cylindrical shank for universal chuck compatibility
• 140-degree standard point angle with web thinning reduces entry walking and drilling thrust
• Fast spiral, two-flute design promotes rapid chip evacuation in metal, non-ferrous, and wood applications
• High speed steel construction provides heat resistance for general-purpose drilling without coatings
• Bright, uncoated finish allows easy visual inspection of cutting edge condition
• Conforms to ANSI specification designation for dimensional consistency

Compatibility

Designed as a general-purpose replacement or supplemental jobber drill bit for use in any standard three-jaw drill chuck accepting a 1/2 inch straight shank, including portable electric drills and bench-mounted drill presses used in trade and shop applications.

Installation Notes

A licensed or qualified tradesperson should secure the shank fully in a properly sized drill chuck before operation. Ensure the workpiece is firmly clamped or fixtured to prevent rotation during drilling. Always wear appropriate eye protection and disconnect or de-energize any equipment being drilled on before beginning work. Do not exceed the drill press or hand drill maximum chuck capacity rating.
