Value Collection BOW-23823-2 Ring Terminal 22-18 Awg

Product Description

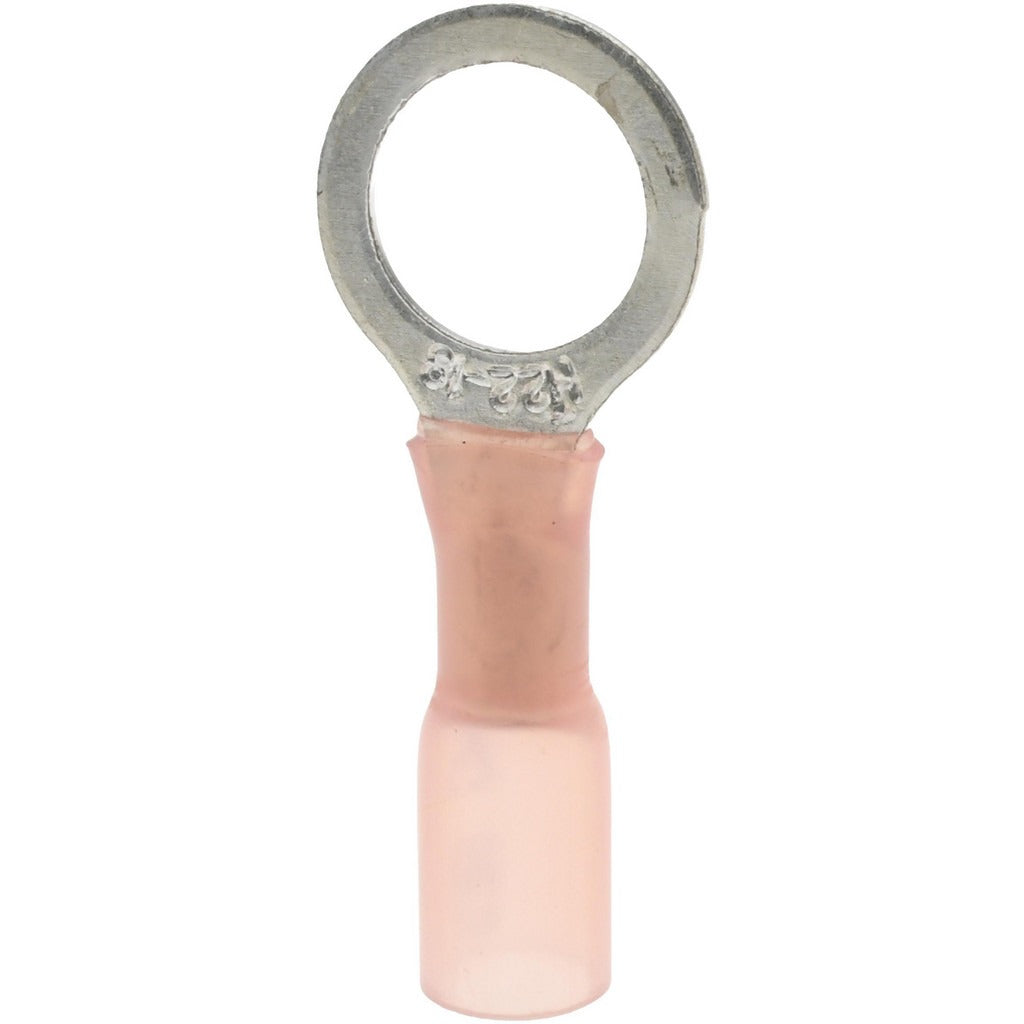

The VALUE COLLECTION BOW-23823-2 is a partially insulated circular ring terminal designed for secure, permanent wire-to-stud electrical connections. It accepts 22 to 18 AWG copper wire and uses a crimp connection method for fast, reliable termination without soldering. The copper contact ensures low-resistance conductivity, and the red heat shrink polyolefin insulation sleeve provides mechanical protection and strain relief at the barrel. This terminal is used in low-voltage wiring applications across HVAC, electrical, and control panel work. Electricians, HVAC technicians, and panel wiring professionals install these as part of standard wire harness assembly and field termination tasks.

This ring terminal is suited for residential and light commercial applications where 22 to 18 AWG wiring terminates at a threaded stud or screw connection. The 3/8 inch stud size makes it compatible with common equipment terminal blocks, grounding lugs, and control board mounting points. Red color coding follows standard industry practice for 22 to 18 AWG wire range identification, allowing for quick visual confirmation during installation and inspection. It is RoHS compliant, making it appropriate for use in systems and assemblies that require restricted hazardous substance compliance.

Key Features

• Partial insulation with red heat shrink polyolefin sleeve for barrel protection and strain relief
• Crimp connection compatible with 22 to 18 AWG wire — no soldering required
• Copper contact material for reliable low-resistance conductivity
• 3/8 inch stud size fits common terminal blocks, grounding points, and equipment studs
• Red color coding aligns with standard AWG range identification for 22 to 18 AWG
• RoHS compliant for use in restricted-substance assemblies

Compatibility

Designed as an OEM-style replacement and general-use ring terminal for low-voltage control wiring applications requiring a 3/8 inch stud size and 22 to 18 AWG wire range.

Installation Notes

Installation is typically performed by licensed electricians or HVAC technicians following NEC guidelines for wire termination and strain relief. Always de-energize the circuit before installing or removing ring terminals. Use a calibrated ratcheting crimp tool sized for 22 to 18 AWG insulated terminals to achieve a proper crimp — an undersized or manual crimp tool may result in a loose or high-resistance connection. Inspect the insulation sleeve after crimping to confirm the barrel is fully seated and no bare conductor is exposed beyond the sleeve.
