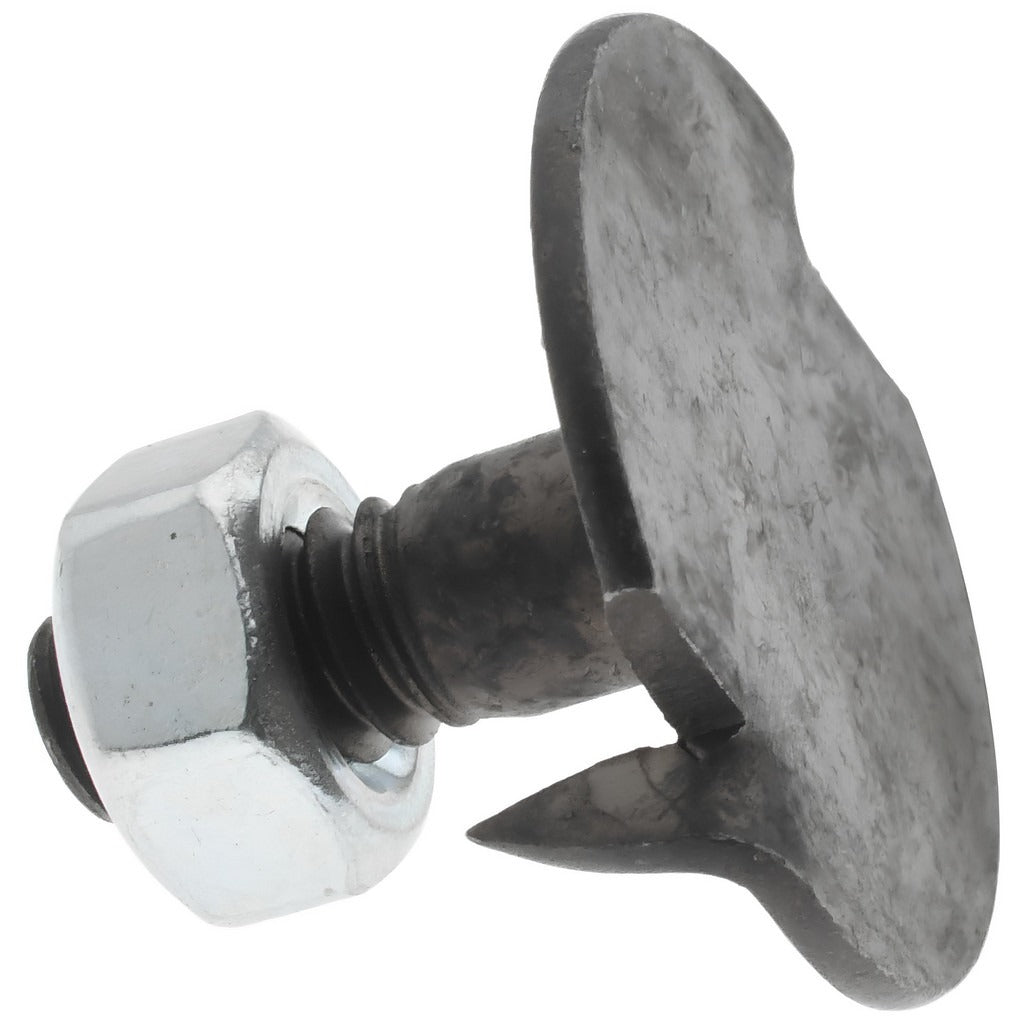

Value Collection BOECF4012wHex Elevator Bolt 1/4-20

Product Description

The VALUE COLLECTION BOECF4012wHex is a 1/4-20 UNC elevator bolt designed for conveyor and bulk-handling applications where a low-profile, flush-seating fastener is required. The fanged head resists rotation when driven into wood or soft substrates, eliminating the need for a wrench on the bolt head during installation. Made from Grade 2 steel with an uncoated finish, this bolt measures 3/4 inches under the head with a head diameter ranging from 0.969 to 1.008 inches (31/32 inches nominal). It is sold individually but requires a minimum order of 100 pieces.

Elevator bolts are used in agricultural conveyor belts, bucket elevator systems, and material-handling equipment. The flat, wide head sits flush against belting material to prevent snagging and reduce wear on conveyor surfaces. This bolt is a standard fastener choice for grain elevators, feed mills, and industrial conveyor assemblies where frequent belt replacement demands a consistent, readily available hardware specification.

Key Features

• Fanged head design resists rotation during nut installation without requiring a secondary tool on the bolt
• Wide head diameter of 31/32 inches distributes clamping load across conveyor belt material
• 1/4-20 UNC thread standard ensures broad nut and hardware compatibility
• Grade 2 steel construction suitable for standard load conveyor belt fastening
• Uncoated finish for use in dry or controlled-environment applications

Compatibility

Designed as an OEM-style replacement or standard-service elevator bolt for wood-deck conveyor assemblies, bucket elevator belt systems, and agricultural material-handling equipment requiring 1/4-20 UNC fanged-head hardware.

Installation Notes

Elevator bolts are installed by maintenance technicians and millwrights servicing conveyor and bulk-handling systems. De-energize and lock out the conveyor drive before replacing any belt hardware. Insert the bolt from the pulley side of the belt so the flat head seats flush against the belt surface, then secure with a matching 1/4-20 hex nut and washer from the carry side. Follow applicable ANSI and OSHA lockout/tagout procedures for conveyor maintenance.
