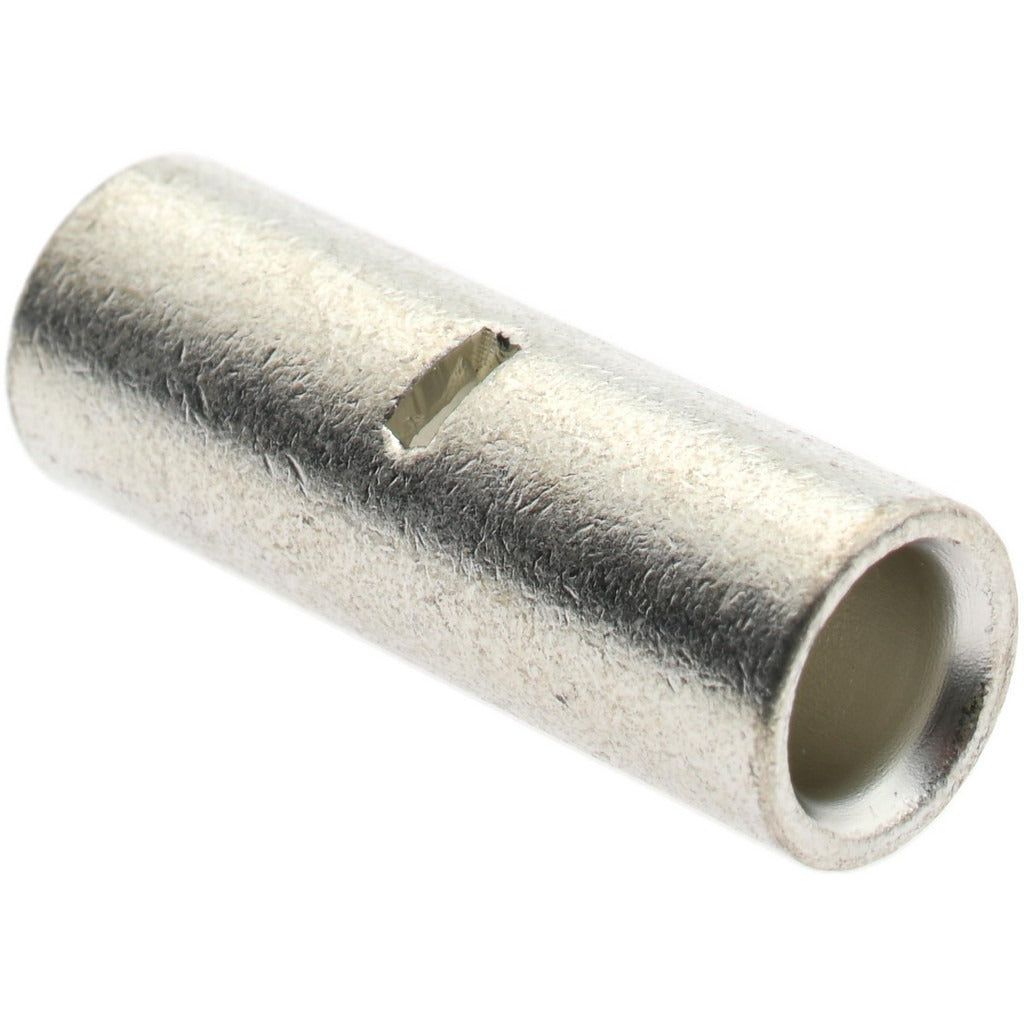

Value Collection BNT14 Butt Splice Terminal 6 Awg

Product Description

The VALUE COLLECTION BNT14 is a non-insulated, crimp-on butt splice terminal designed to join two conductors in a single inline connection. Rated for 6 AWG wire (14.00 sq mm), this terminal measures 1.024 inches in overall length and 0.350 inches in overall diameter. The copper contact material ensures reliable conductivity in electrical splicing applications. It accepts two wire entries, one at each end, making it a straightforward solution for extending or repairing wire runs in panel wiring, motor leads, and field wiring tasks. Electricians and electrical contractors are the primary installers of this component.

This butt splice terminal is suited for use in residential, commercial, and light industrial electrical installations where a compact, non-insulated inline splice is required. Typical applications include control panel wiring, equipment repair, and electrical rough-in work. Because the terminal is non-insulated, installers typically follow up with appropriate heat-shrink tubing or electrical tape to meet insulation requirements for the installation environment. Sold in minimum order quantities of 25 units per order.

Key Features

• Crimp-on connection type for fast, tool-based termination without solder
• Compatible with 6 AWG wire (14.00 sq mm)
• Non-insulated copper contact for direct conductivity
• Two wire entries allow inline butt splicing of conductor ends
• Overall length of 1.024 inches and overall diameter of 0.350 inches for compact fitment
• cUL Listed, UL Listed, and RoHS Compliant

Compatibility

Designed as a standard crimp-on butt splice terminal for 6 AWG copper conductors in residential, commercial, and light industrial electrical wiring applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize the circuit and verify zero voltage with a meter before terminating any conductors. Use a ratcheting crimp tool sized for the appropriate wire gauge to ensure a secure, gas-tight crimp. Because this terminal is non-insulated, cover the completed splice with approved insulating material rated for the operating environment before restoring power.
