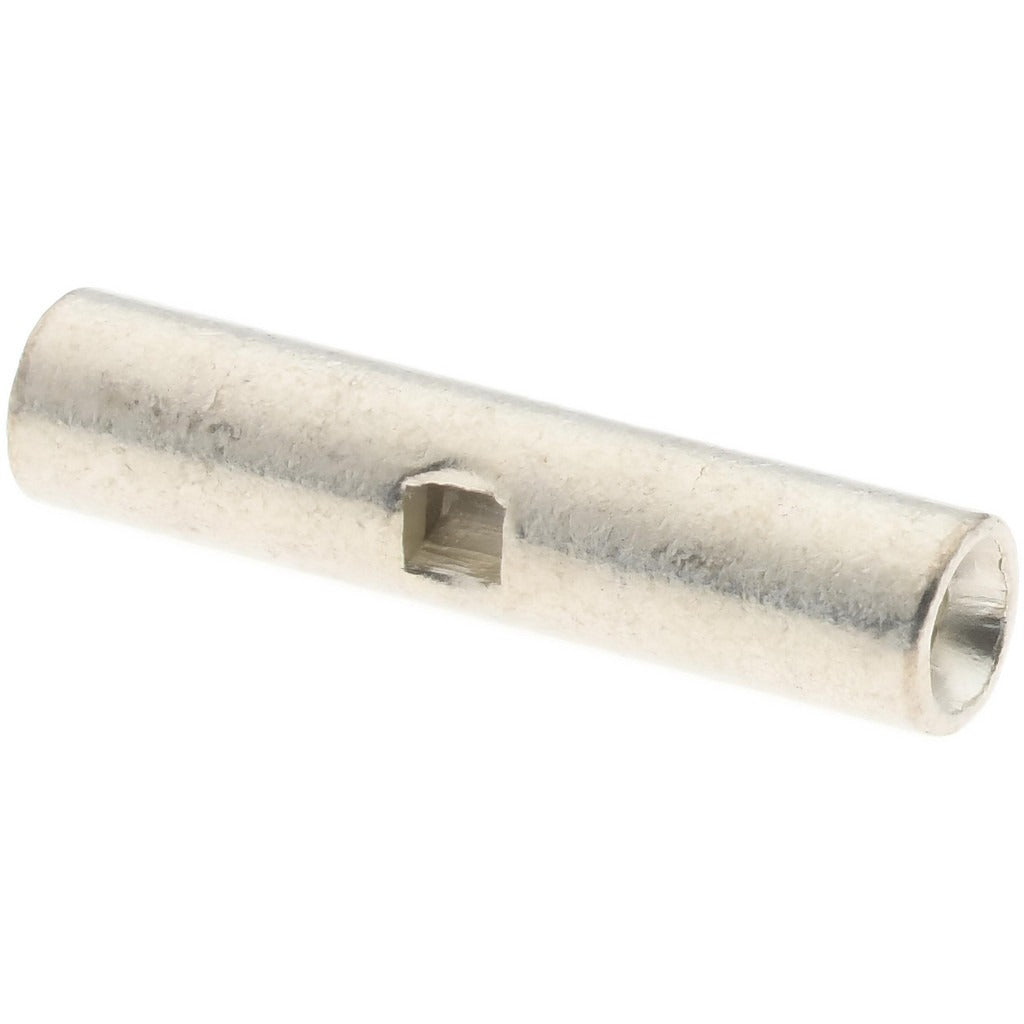

Value Collection BNT1 Butt Splice Terminal Crimp-on

Product Description

The VALUE COLLECTION BNT1 is a non-insulated, crimp-on butt splice terminal designed for joining two conductors in a single inline connection. Constructed from copper, this terminal accepts wire sizes ranging from 0.50 to 1.50 square mm and measures 15.00 mm (0.591 inches) in overall length with an overall diameter of 3.30 mm (0.130 inches). It is used in low-voltage wiring assemblies, control panels, and general electrical interconnect work where a compact, reliable mechanical connection is required. Electricians, HVAC technicians, and panel builders install this terminal using a standard crimp tool matched to the wire gauge and terminal type.

This butt splice terminal is suited for residential and light commercial wiring applications where two conductors must be joined end-to-end without the bulk of an insulated sleeve. Common install scenarios include control circuit wiring, instrument wiring, and wire harness fabrication. The non-insulated design allows for inspection of the crimp joint and compatibility with heat-shrink sleeving applied over the finished connection. The terminal accepts two wire entries, one from each end, and is appropriate for copper conductors within the listed size range.

Key Features

• Non-insulated copper construction for visible crimp inspection and use with field-applied heat shrink
• Crimp-on connection type — no soldering required
• Accepts wire sizes from 0.50 to 1.50 square mm in a 2-wire entry configuration
• Compact profile: 15.00 mm (0.591 inches) overall length, 3.30 mm (0.130 inches) overall diameter
• UL Listed and cUL Listed; RoHS Compliant

Compatibility

Designed as a standard crimp-on butt splice terminal for copper conductors sized 0.50 to 1.50 square mm, suitable for use in low-voltage control wiring and general electrical assembly applications.

Installation Notes

Installation is performed by electricians or qualified wiring technicians using a calibrated ratcheting crimp tool appropriate for the terminal size and wire gauge. De-energize and lock out the circuit before making any wire connections. Strip conductors to the recommended length for the terminal barrel and verify full conductor insertion before crimping. Where insulation protection is required by code or application, apply a compatible heat-shrink sleeve over the finished crimp joint.
