Value Collection BHS7X03010-100BX M3x0.5 Button Cap Screw

Product Description

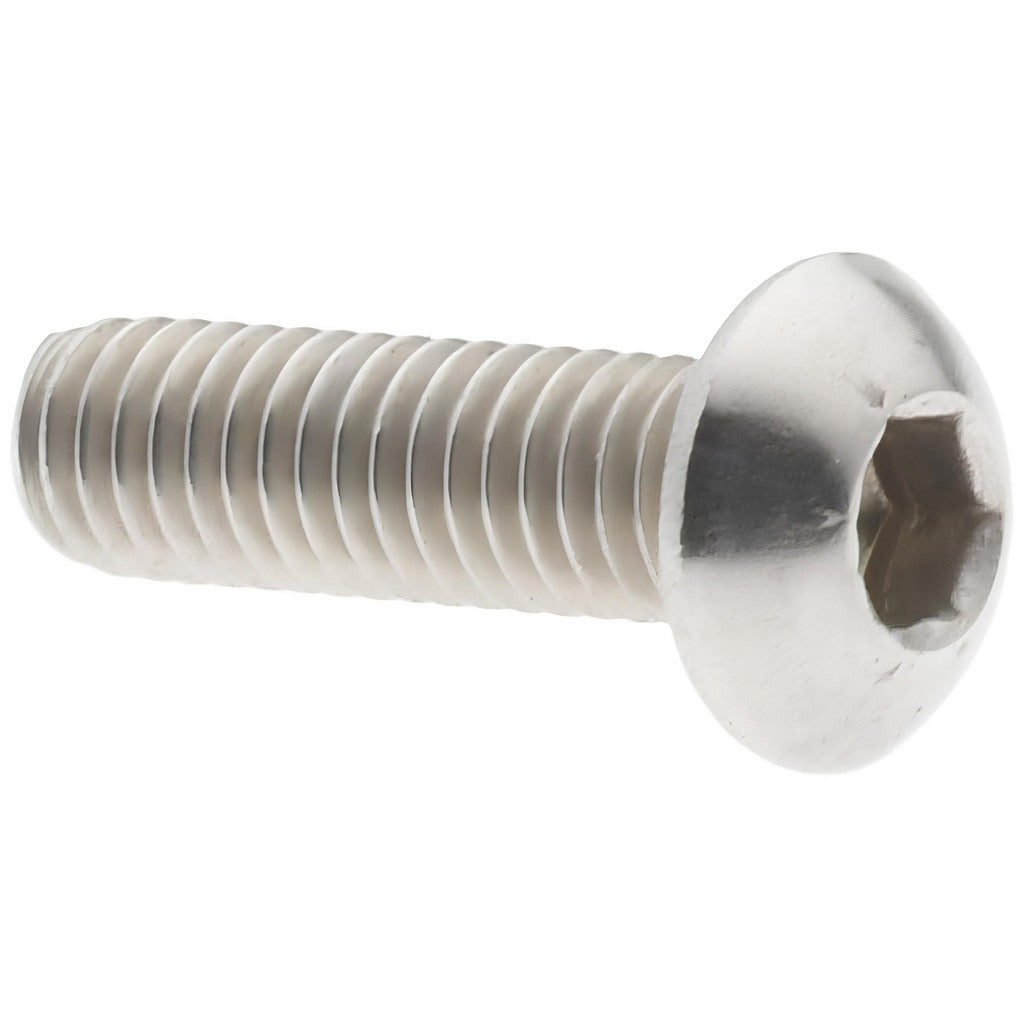

The VALUE COLLECTION BHS7X03010-100BX is an M3x0.5 button socket cap screw manufactured from A2 (18-8) stainless steel with a bright, uncoated finish. It features a low-profile button head driven by a 2 mm hex socket and a fully threaded shank with a 10 mm length under the head. The 6G thread fit class provides consistent engagement in metric-tapped holes. Conforming to ANSI/ASME B18.3.4M and ISO 7380, these fasteners are suited for applications where a smooth, rounded head profile is required and corrosion resistance is a priority. Machinists, maintenance technicians, and assembly professionals working with metric hardware are the primary installers.

These button socket cap screws are used across light industrial, mechanical assembly, panel fabrication, and equipment maintenance applications. The M3x0.5 metric thread and stainless steel construction make them well suited for corrosion-prone environments, food-processing adjacent assemblies, and general-purpose fastening where a low head height is necessary to clear adjacent components or mating surfaces. Sold in a minimum order quantity of 100 pieces per box.

Key Features

• Low-profile button head keeps fastener below or flush with surrounding surfaces
• A2 (18-8) stainless steel construction resists corrosion and oxidation
• Fully threaded shank with M3x0.5 metric pitch and 6G thread fit class
• 2 mm hex socket drive for standard Allen key or hex bit installation
• Conforms to ANSI/ASME B18.3.4M and ISO 7380 fastener standards
• Bright, uncoated finish maintains dimensional consistency and clean appearance

Compatibility

Designed for use in M3x0.5 metric-tapped holes where an ISO 7380 button socket cap screw with a low-profile head is specified.

Installation Notes

Install using a calibrated 2 mm hex key or hex socket bit to avoid rounding the drive recess. Verify thread engagement depth in the mating component before torquing. Do not mix metric and inch-series fasteners in the same assembly. Follow applicable ASME or equipment-manufacturer torque guidelines for M3 stainless fasteners when final seating.
