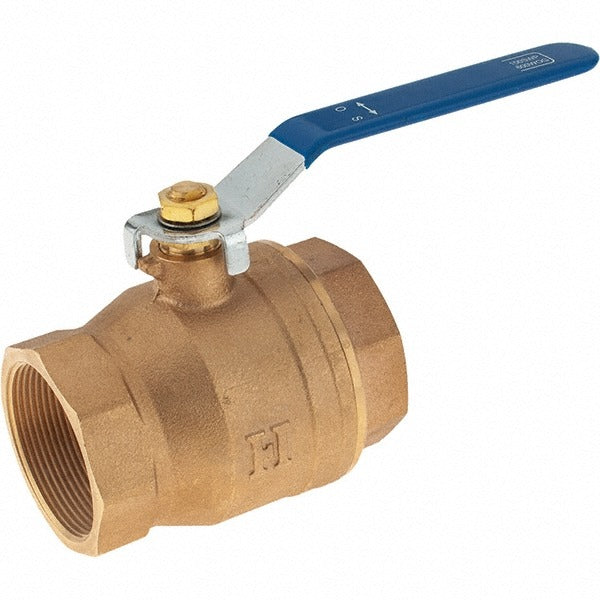

Value Collection BDNA--19075-5 Ball Valve 2 Inch Npt Bronze

Product Description

The VALUE COLLECTION BDNA--19075-5 is a full-port, two-piece manual ball valve designed for 2-inch NPT pipe connections. The bronze body provides corrosion resistance in plumbing and fluid-handling systems, while the reinforced Teflon seat delivers a reliable, low-friction seal under repeated cycling. A lever handle gives technicians direct, quarter-turn shutoff control with immediate visual indication of valve position. This valve is suited for residential and light commercial plumbing, HVAC hydronic lines, and general industrial fluid service where full-bore flow capacity is required. Licensed plumbers and pipefitters are the primary installers.

This valve fits standard 2-inch NPT threaded pipe found in domestic water supply systems, hydronic heating and cooling distribution lines, and process piping where a full-port design is needed to minimize pressure drop across the valve. The two-piece body construction allows for in-line seat and ball service without removing the valve body from the pipeline, which reduces downtime during maintenance. It is appropriate for both new construction rough-in and retrofit replacement applications.

Key Features

• Full-port design maintains full pipe bore diameter for unrestricted flow and minimal pressure drop
• Bronze body construction resists corrosion in water and hydronic fluid service
• Reinforced Teflon seat provides a durable, low-friction seal with extended cycle life
• 2-inch NPT end connections for direct threaded installation without adapters
• Two-piece body allows in-line servicing of internal components
• Lever handle delivers quick quarter-turn operation with clear open and closed indication

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 2-inch NPT threaded piping systems in plumbing and hydronic HVAC applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IPC guidelines. Shut off and depressurize the system completely before threading the valve into the line, and drain standing fluid to prevent spills. Apply appropriate thread sealant or PTFE tape to the NPT threads before make-up; do not over-tighten, as bronze fittings are susceptible to thread damage from excessive torque. Confirm valve orientation and handle clearance before returning the system to service.
