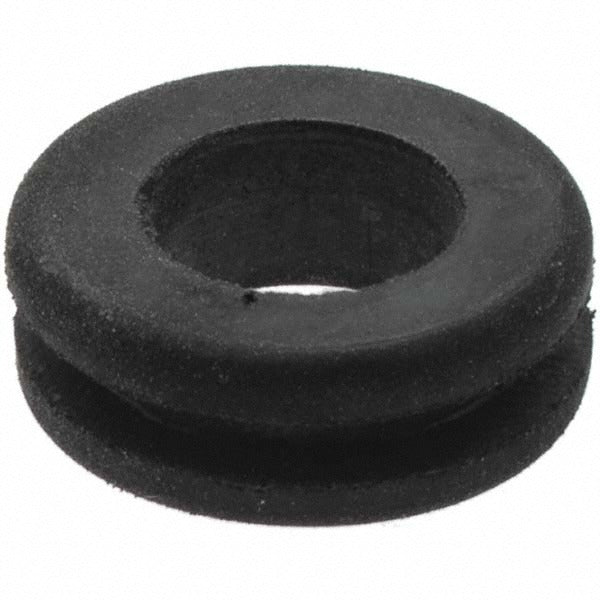

Value Collection BD9684 Rubber Grommet 5/8 in Od

Product Description

The VALUE COLLECTION BD9684 is a rubber grommet designed to protect wiring, tubing, and cables where they pass through panel cutouts, sheet metal, and enclosures. With a 5/8-inch outer diameter, a 5/16-inch inside diameter, and a 13/32-inch slot diameter paired with a 1/16-inch slot width, this grommet provides a snug, protective barrier that prevents abrasion and chafing at the penetration point. The all-rubber construction offers flexibility for easy installation and a tight seal around routed conductors or lines. Electricians, HVAC technicians, and plumbers commonly use grommets of this type when routing control wiring, low-voltage lines, or small-diameter tubing through metal panels or junction boxes.

This grommet is suited for light-duty sealing and wire protection applications in residential and commercial equipment. Typical install scenarios include control panel fabrication, electrical enclosure wiring, HVAC equipment cabinets, and general sheet metal work where a clean, protected wire passage is required. The slot design allows the grommet to be installed over existing wiring without full disassembly of the harness.

Key Features

• Outer diameter of 5/8 inch for a secure fit in matching panel cutouts
• Inside diameter of 5/16 inch accommodates small-diameter wiring and tubing
• Slot diameter of 13/32 inch with a 1/16-inch slot width for snap-in or slotted installation
• All-rubber construction resists abrasion and provides flexibility during install
• Sold in packages of 50, suitable for multi-unit service calls or panel builds

Compatibility

Designed as a general-purpose rubber grommet for use in electrical enclosures, HVAC equipment cabinets, and sheet metal panels requiring a 5/8-inch OD cutout fitment.

Installation Notes

Installation is typically performed by electricians or HVAC technicians during panel wiring or equipment assembly. De-energize all circuits and confirm power is off before routing conductors through the grommet. Press the grommet firmly into the panel cutout until the flange seats flush against the panel surface. Verify the inside diameter provides adequate clearance without allowing conductor insulation to contact raw metal edges.
