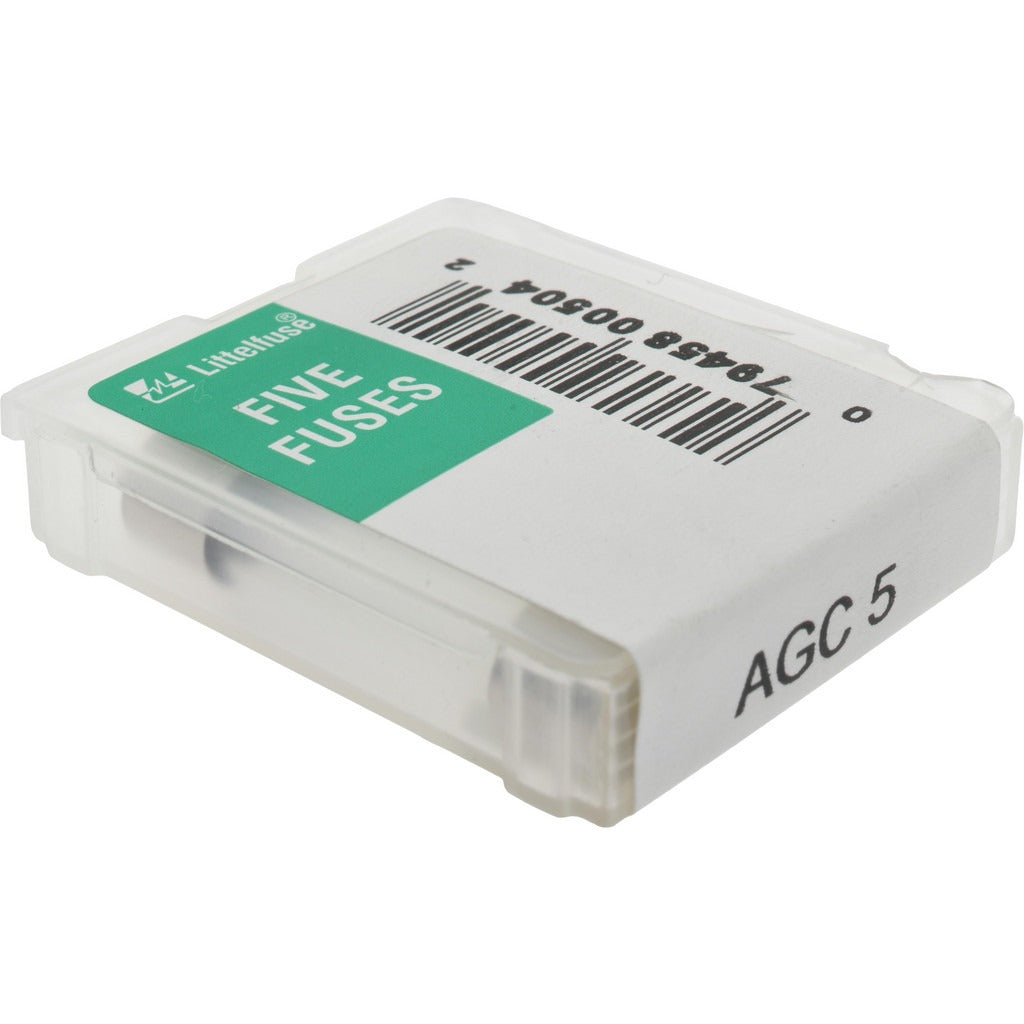

Value Collection BD7574 Cartridge Fast-acting Fuse 5A

Product Description

The VALUE COLLECTION BD7574 is a glass cartridge fast-acting fuse rated at 5 amps, designed for overcurrent protection in low-voltage electrical circuits. The cartridge body measures 1.25 inches overall length and 0.25 inches in diameter, conforming to the standard AGC/3AG form factor widely used in control panels, HVAC equipment, and light industrial applications. Fast-acting fuses respond immediately to overcurrent conditions without intentional time delay, making them appropriate for circuits where downstream components cannot tolerate sustained overloads. This package contains 5 fuses. Installation is typically performed by licensed electricians or qualified HVAC and controls technicians.

This fuse is suited for use in residential and light commercial electrical systems, HVAC control boards, instrument panels, and similar low-amperage branch circuits requiring fast overcurrent response. The 5-amp rating and standard cartridge dimensions make it a common service and replacement fuse kept on service vehicles for field repairs. The glass body allows visual inspection of the fuse element without removal, speeding up diagnostic work during troubleshooting.

Key Features

• Fast-acting fuse response with no intentional time delay — protects sensitive downstream components immediately
• 5-amp current rating suitable for low-amperage control and instrument circuits
• Glass cartridge body allows visual inspection of the fuse element in the field
• Standard 1.25-inch OAL by 0.25-inch diameter form factor fits common fuse holders
• Sold in a pack of 5 — practical for stocking service kits and panel repair work

Compatibility

Designed as a standard-form-factor replacement cartridge fuse for any fuse holder accepting a 1.25-inch OAL by 0.25-inch diameter AGC-style glass cartridge fuse rated at 5 amps.

Installation Notes

Always de-energize and lock out the circuit before replacing a fuse. Verify the replacement fuse matches the amperage rating and form factor specified on the equipment label or wiring diagram — substituting a higher-amperage fuse can result in equipment damage or fire hazard. Use a fuse puller where the holder design requires it to avoid contact with live terminals. Work must comply with applicable NEC requirements and any local amendments governing overcurrent protection devices.
