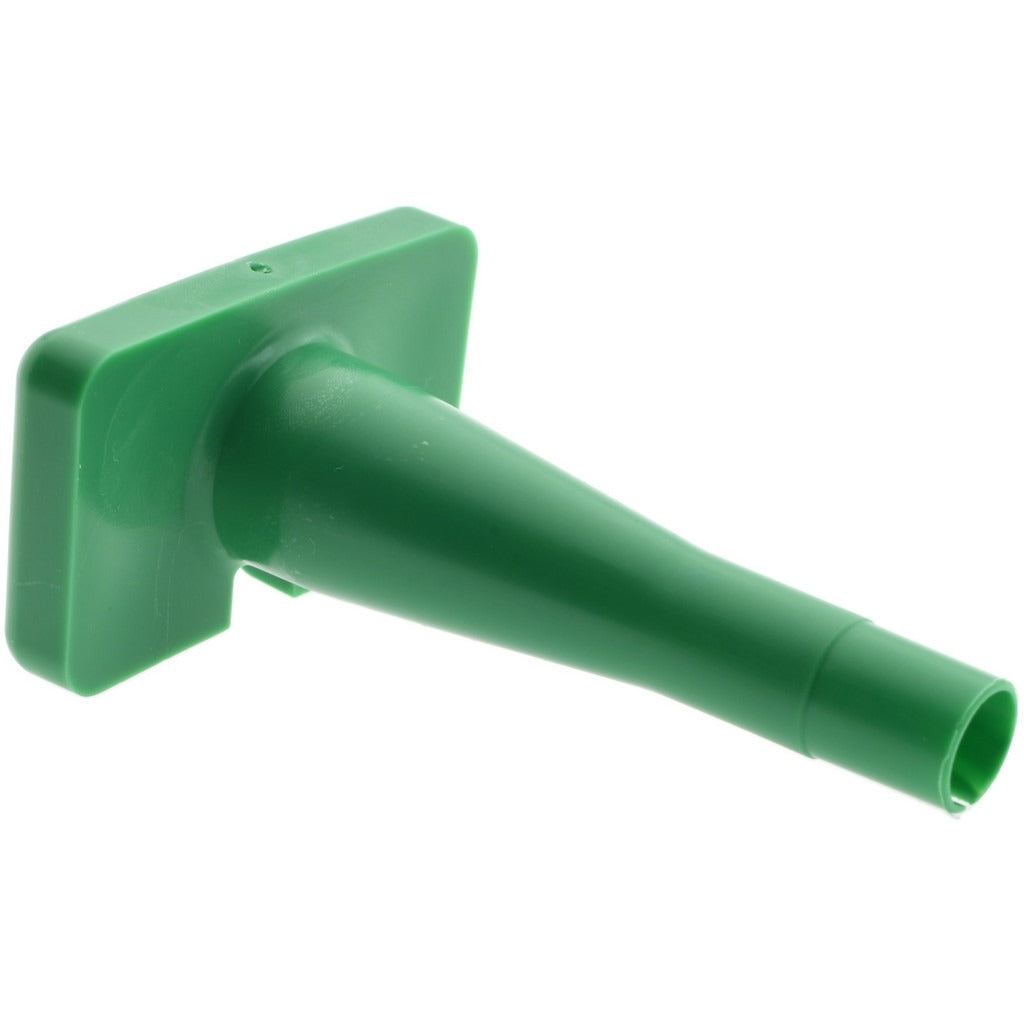

Value Collection BD114008 Pin Extraction Tool

Product Description

The VALUE COLLECTION BD114008 is a pin extraction tool designed for servicing Deutsch terminals. It is used to depin connector housings without damaging the terminal contacts or the housing itself. Deutsch-style connectors are common in heavy equipment, commercial vehicles, agricultural machinery, and industrial wiring harnesses. Electricians, automotive technicians, and equipment service professionals use this tool when a terminal must be removed from its housing for repair or circuit modification. The tool engages the locking tab on the terminal, releasing it cleanly so it can be withdrawn from the rear of the connector.

This tool is suited for work on wiring harnesses that incorporate Deutsch connector systems. It is a hand tool that requires no power source and is used in field service, shop repair, and harness assembly environments. The compact form factor makes it practical for technicians working in confined spaces around connector banks on machinery, vehicles, or control panels.

Key Features

• Designed specifically for use with Deutsch terminal connectors
• Allows clean pin removal without damaging connector housing or terminal contacts
• Compact form factor suited for confined-space access
• No power source required for operation
• Sold as a single unit

Compatibility

Designed for use with Deutsch terminals as specified by the manufacturer.

Installation Notes

Power down or de-energize any circuit before depinning a terminal to prevent shorts or arc damage. Insert the extraction tool carefully to engage the terminal retention tab before applying withdrawal force. Avoid using excessive force, which can deform the terminal or housing. This tool is intended for use by trained electricians or equipment technicians familiar with connector servicing procedures.
