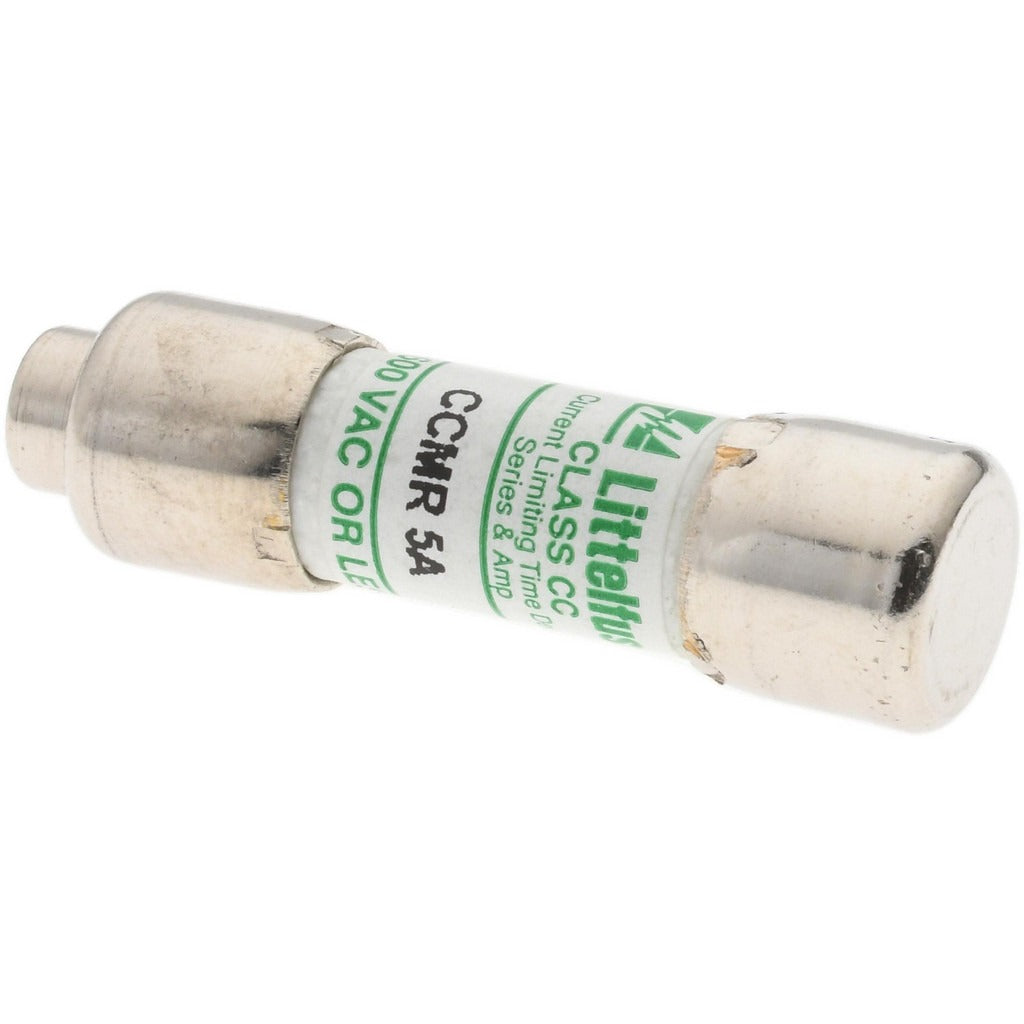

Value Collection BD--CCMR-5 Cc Class 5A Time Delay Fuse

Product Description

The VALUE COLLECTION BD--CCMR-5 is a Class CC cartridge time delay fuse rated at 5 amps, designed for general-purpose overcurrent protection in control circuits and low-amperage branch circuits. As a dual-element, time delay design, it tolerates harmless temporary inrush currents without nuisance tripping while still opening quickly on sustained fault conditions. Licensed electricians and HVAC technicians install these fuses in fusible disconnect blocks, control panels, and transformer secondary circuits where Class CC rejection slots are specified. The cartridge body fits standard CC-rated fuse holders that reject non-CC fuse types, maintaining system protection integrity.

This fuse is appropriate for residential and light commercial electrical panels, HVAC control circuit protection, and low-voltage transformer applications where a Class CC time delay fuse is called out by the equipment manufacturer or the NEC. It is packaged in a quantity of 10 units per pack, making it practical for service technicians stocking a truck or a shop supplying repeat-use consumables. The dual-element construction is well suited for motor control and transformer circuits where brief startup surges must be tolerated without sacrificing short-circuit protection.

Key Features

• Class CC rejection-style cartridge body prevents substitution with lower-rated fuse classes
• Dual-element, time delay design rides through motor and transformer inrush without nuisance trips
• 5-amp rating suited for control circuit and low-amperage branch circuit protection
• CSA HRCI-MISC Certified and UL 198c Listed for verified safety compliance
• Sold in a pack of 10 for convenient restocking

Compatibility

Designed as a general-purpose replacement cartridge fuse for use in any Class CC-rated fuse holder or fusible disconnect accepting 5-amp, time delay CC fuses.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lockout/tagout the circuit before removing or installing any fuse. Use an appropriate fuse puller for cartridge-style fuses — never remove a cartridge fuse from an energized holder with bare hands or uninsulated tools. Verify the replacement fuse class, amperage, and voltage rating match the equipment nameplate and original fuse specifications before reinstallation.
