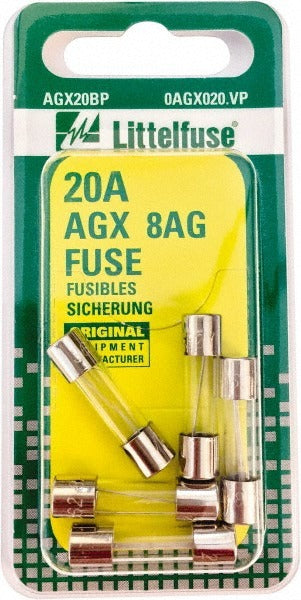

Value Collection BD-7564-1 Cartridge Fast-acting Fuse 20A

Product Description

The VALUE COLLECTION BD-7564-1 is a mini-type cartridge fast-acting fuse rated at 20 amps, designed for overcurrent protection in low-voltage electrical circuits. Measuring 0.875 inches in overall length and 0.25 inches in diameter, this small-format glass body fuse opens quickly on fault conditions, limiting damage to downstream components. The fast-acting response makes it appropriate for circuits where sustained overloads are not expected and immediate interruption is required. Electricians and electronics technicians install this type of fuse in control panels, automotive circuits, HVAC control boards, and light commercial equipment.

This fuse is suited for applications requiring a compact mini cartridge form factor in residential and light commercial electrical systems. Its glass body construction allows visual inspection of the fuse element without removal, speeding up troubleshooting during service calls. Typical installations include low-voltage control circuits, instrumentation panels, and equipment protection applications where a fast-acting 20-amp fuse of this size is specified by the original equipment manufacturer.

Key Features

• Fast-acting fuse timing for immediate overcurrent interruption
• 20-amp rating suitable for light-duty control and equipment circuits
• Mini cartridge body type in a compact 0.875-inch overall length
• 0.25-inch diameter fits standard mini cartridge fuse holders
• Glass body construction allows quick visual inspection of fuse element
• Sold in a package quantity of 5 units

Compatibility

Designed as a direct-fit replacement for mini cartridge fast-acting fuses with a 0.875-inch overall length, 0.25-inch diameter, and 20-amp rating in standard cartridge fuse holders.

Installation Notes

Installation should be performed by a qualified electrician or trained technician. Always de-energize and lock out the circuit before replacing any fuse. Verify that the replacement fuse matches the amperage, voltage rating, and physical dimensions specified for the circuit. Never substitute a higher-rated fuse than what the circuit is designed for, as this defeats overcurrent protection.
