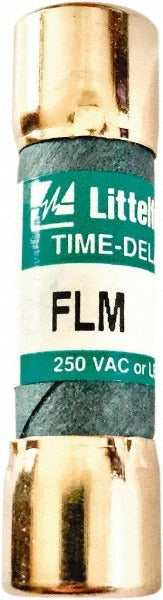

Value Collection BD-29716 Cartridge Time Delay Fuse 1A 250V

Product Description

The VALUE COLLECTION BD-29716 is a cartridge-style, time delay fuse rated at 1 amp and 250 volts with a 10 kA interrupting capacity at AC. It measures 1.5 inches in overall length and 13/32 inch (10.30 mm) in diameter, fitting standard cartridge fuse holders used across HVAC control circuits, low-voltage panels, and light electrical equipment. The time delay design allows temporary inrush currents to pass without nuisance tripping while still protecting downstream components from sustained overcurrent faults. Electricians and HVAC technicians install this fuse type when a fast-blow fuse would cause unnecessary callbacks on motor-start applications.

This fuse is suited for residential and light commercial applications where a 1 amp, 250-volt cartridge time delay fuse is specified. Common install scenarios include control board fuse protection in HVAC equipment, small transformer circuits, and low-amperage branch circuit protection. The 13/32 inch diameter body fits the cartridge fuse holder format standard in many control panels. Sold in a package quantity of 10, making it practical for service vans and shop stock.

Key Features

• Time delay action handles motor inrush without nuisance trips
• 1 amp rating with 250-volt AC rating
• 10 kA interrupting capacity at AC
• 1.5 inch overall length, 13/32 inch diameter cartridge body
• CSA Certified and UL Listed
• Package quantity of 10 per order

Compatibility

Designed as a standard 1 amp, 250-volt cartridge time delay fuse for use in any fuse holder accepting a 13/32 inch diameter, 1.5 inch cartridge fuse body.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician following applicable NEC requirements. Always de-energize and lock out the circuit before removing or inserting a fuse. Use an appropriate fuse puller for cartridge fuses to avoid contact with live terminals. Confirm the replacement fuse amperage and voltage ratings match the equipment nameplate or circuit documentation before energizing.
