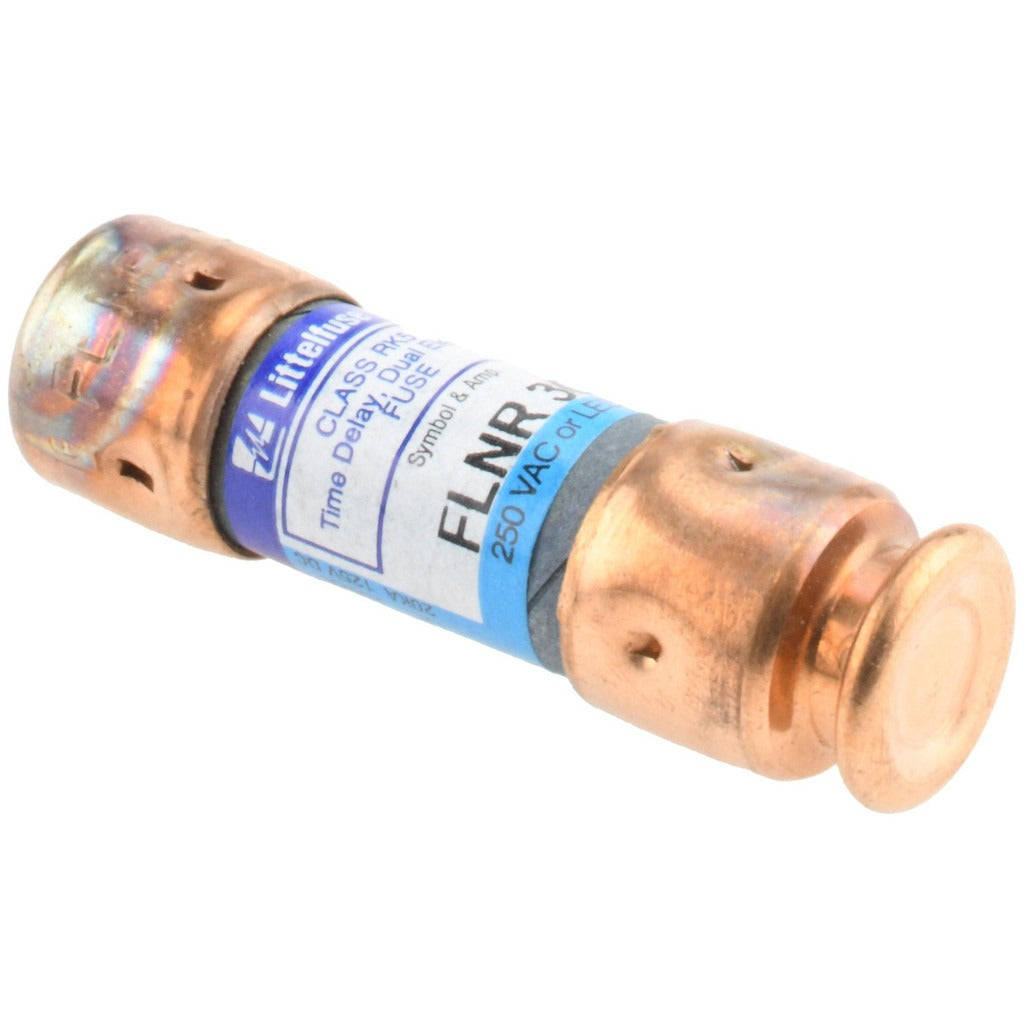

Value Collection BD-29573 RK5 30A Cartridge Time Delay Fuse

Product Description

The VALUE COLLECTION BD-29573 is a cartridge-style, time delay fuse rated at 30 amps and classified RK5 for general purpose overcurrent protection. Measuring 2 inches in overall length and 9/16 inches in diameter, this dual-element fuse is built to handle temporary inrush current surges while still providing reliable short-circuit and overload protection. The time delay characteristic makes it well suited for motor and transformer circuits where startup current briefly exceeds the continuous rating. Licensed electricians and facilities maintenance technicians are the primary installers for this fuse class.

This fuse is used in residential, commercial, and light industrial electrical panels, disconnect switches, and fusible equipment where an RK5-class cartridge fuse is specified. Its 30-amp rating fits a wide range of single-phase motor branch circuits, HVAC disconnect applications, and general load circuits. The dual-element construction separates the time delay and short-circuit functions internally, allowing nuisance-free operation under normal motor starting conditions while still clearing fault currents quickly. Package quantity is 10 units per order.

Key Features

• RK5 fuse class for general purpose time delay overcurrent protection
• 30-amp continuous current rating with dual-element construction
• 2-inch overall length and 9/16-inch diameter cartridge body
• 200 kA interrupting rating for high fault-current environments
• CSA Certified, UL 198L Listed, and Federal Specification W-F-1814 QPL compliant
• Sold in packs of 10 units

Compatibility

Designed as an OEM-style replacement for RK5-class cartridge fuse positions in residential, commercial, and light industrial panelboards and disconnect switches requiring a 30-amp, 2-inch time delay fuse.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always de-energize and lock out the circuit before removing or installing any fuse. Use an appropriately rated fuse puller tool when removing cartridge fuses from clip-style holders to avoid contact with energized components. Verify that the fuse holder is rated for RK5-class fuses and that the panel or disconnect is sized for the 30-amp rating before installing.
