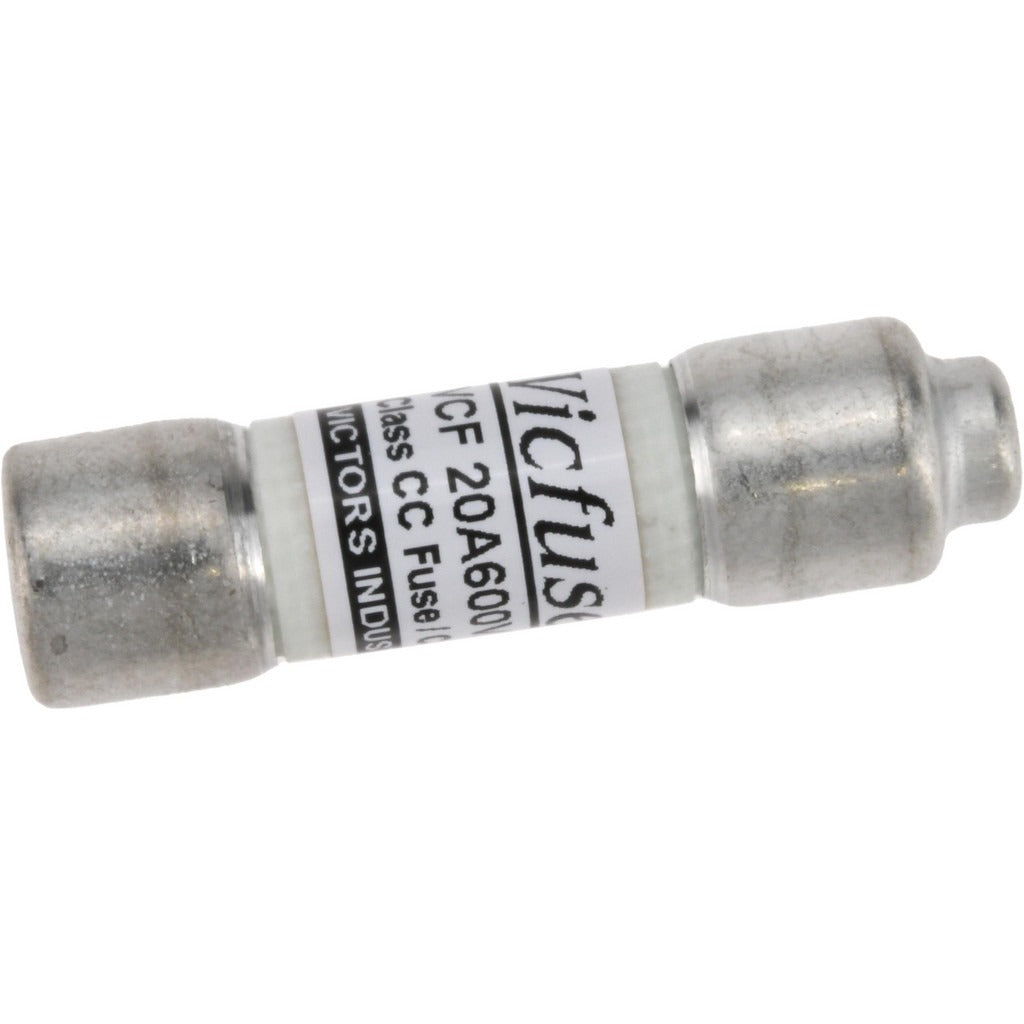

Value Collection BD-29322 Cc Fast-acting Fuse 20A 600V

Product Description

The VALUE COLLECTION BD-29322 is a CC-class cartridge fast-acting fuse rated at 20 amps and 600 volts, with a 200 kA RMS symmetrical interrupting capacity. It measures 1-1/2 inches overall length and 13/32 inches in diameter. Fast-acting fuses respond immediately to overcurrent events without intentional time delay, making them well suited for protecting sensitive equipment and components that cannot tolerate sustained overcurrent. This fuse is installed by licensed electricians and qualified maintenance technicians in branch circuit and equipment protection applications where Class CC rejection characteristics are required.

The BD-29322 is designed for use in industrial and commercial electrical systems where Class CC fuse holders are specified. The rejection feature ensures that only properly rated Class CC fuses can be installed, preventing accidental substitution of lower-rated or non-rejecting fuse types. Typical applications include control circuits, automation equipment, and power distribution panels operating at up to 600 volts AC.

Key Features

• Fast-acting fuse response with no intentional time delay for immediate overcurrent protection
• Class CC rejection design prevents substitution of incompatible fuse types
• 600-volt rating suitable for industrial and commercial branch circuit applications
• 200 kA RMS symmetrical interrupting capacity for high fault-current environments
• CSA Certified and UL Listed for compliance with recognized safety standards
• Compact cartridge body at 1-1/2 inches OAL and 13/32 inches diameter for standard CC fuse holders

Compatibility

Designed for use in Class CC fuse holders rated for fast-acting, rejection-style cartridge fuses up to 600 volts and 20 amps.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize and lock out the circuit before removing or installing fuses. Use an insulated fuse puller rated for the voltage of the circuit. Verify that the fuse holder is a Class CC rejection-style holder before installation to ensure proper fit and safety compliance.
