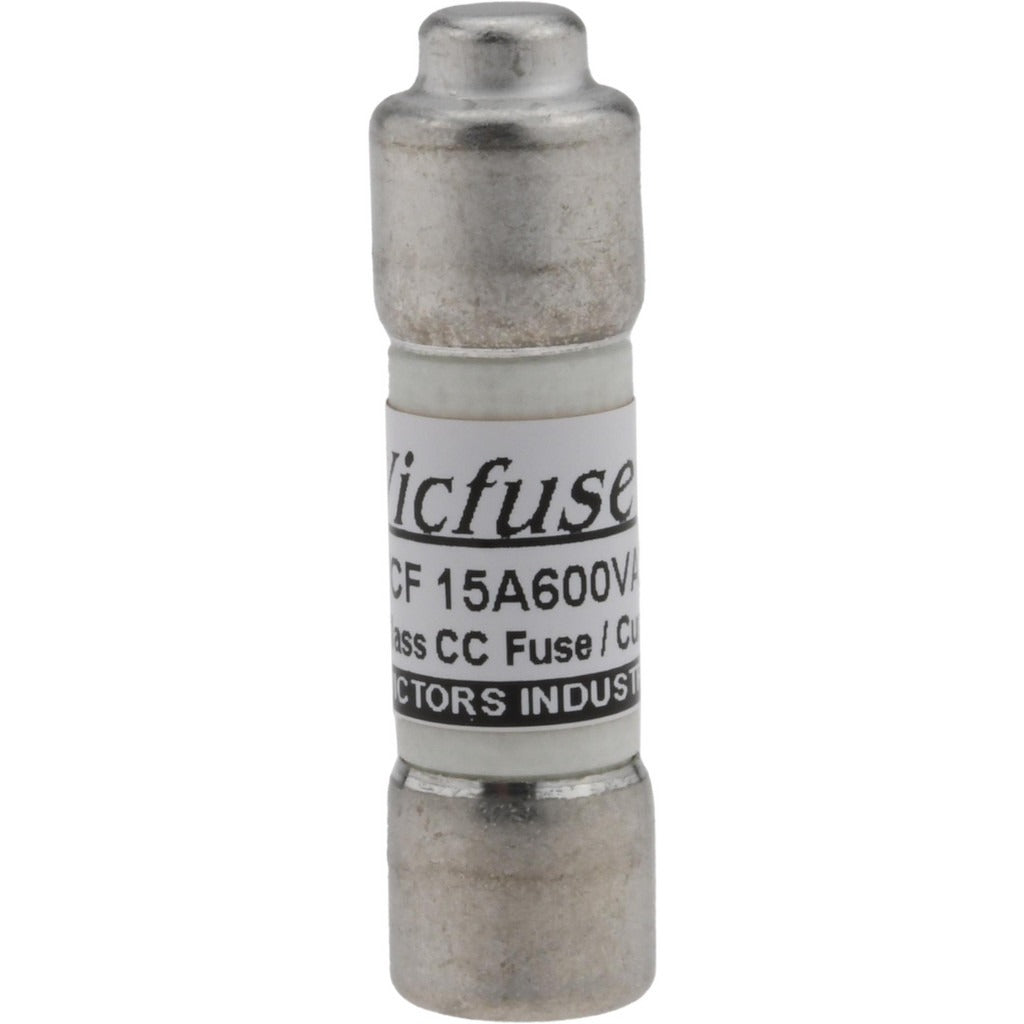

Value Collection BD-29321 Cc Fast-acting Fuse 15A 600V

Product Description

The VALUE COLLECTION BD-29321 is a CC-class cartridge fast-acting fuse rated for 15 amps and 600 volts, with an interrupting capacity of 200 kiloamperes (kA) RMS symmetrical. It measures 1.5 inches overall length with a 13/32-inch (approximately 0.406 inches) diameter body. This fuse is designed to provide rapid overcurrent protection in electrical distribution systems and control panels. Licensed electricians and industrial maintenance technicians install this type of fuse in branch circuits and equipment where fast-acting response to fault current is required to protect downstream components.

The BD-29321 is suited for use in residential, commercial, and light industrial electrical applications where CC-class fuse holders or fuse blocks are installed. Its rejection feature ensures it can only seat in CC-class fuse holders, preventing substitution with non-current-limiting fuse types. Sold individually, this fuse is appropriate for branch-circuit protection in control panels, motor circuits, and power distribution equipment requiring fast-acting overcurrent response.

Key Features

• CC-class rejection body prevents installation in non-CC holders
• Fast-acting timing for rapid response to overload and short-circuit conditions
• 15 A continuous rating at 600 volts AC
• 200 kA RMS symmetrical interrupting capacity
• CSA Certified and UL Listed
• Compact cartridge form: 1.5 inches OAL, 0.406 inches diameter

Compatibility

Designed for use in CC-class fuse holders and fuse blocks rated for 600 volts and accepting the standard CC cartridge fuse form factor.

Installation Notes

CC-class fuses are installed by licensed electricians in accordance with the National Electrical Code (NEC). Always de-energize and lockout/tagout the circuit before replacing a fuse. Use an appropriately rated fuse puller when removing or inserting cartridge fuses to avoid arc flash exposure. Verify the replacement fuse amp rating and class match the circuit requirements and holder specifications before energizing.
