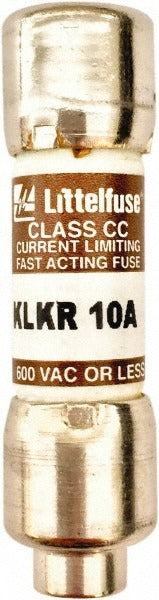

Value Collection BD-29319 Cc Fuse 10A 600V Cartridge

Product Description

The VALUE COLLECTION BD-29319 is a CC-class cartridge fast-acting fuse rated for 10 amps and 600 volts, with an interrupting capacity of 200 kiloamps (RMS symmetrical). It measures 1.5 inches in overall length and 13/32 inches in diameter, making it a compact, rejection-style fuse suited for branch-circuit and equipment protection. Fast-acting fuses respond immediately to overcurrent events without intentional time delay, making them appropriate for circuits that lack inrush current or where downstream equipment requires rapid fault clearing. Electricians and electrical maintenance technicians install this fuse type in fusible disconnect switches, control panels, and industrial equipment enclosures.

The BD-29319 is designed for use in residential, commercial, and light industrial electrical systems where CC-class fuse holders are installed. The rejection feature ensures this fuse can only be seated in CC-rated holders, preventing accidental substitution with lower-rated fuse classes. Typical applications include motor control panels, HVAC control circuits, and power distribution equipment requiring fast fault protection at 600-volt service levels.

Key Features

• Fast-acting fuse response with no intentional time delay for immediate overcurrent protection
• CC-class body with rejection feature prevents misapplication in non-CC holders
• Rated 600 volts and 10 amps for branch-circuit and control-circuit protection
• 200 kA RMS symmetrical interrupting rating for high fault-current environments
• CSA Certified and UL Listed for code-compliant installations

Compatibility

Designed for use in CC-class fuse holders rated for 600 volts. The rejection-style body restricts installation to CC-rated holders only, ensuring proper class matching in fusible disconnect and control panel applications.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize and lock out the circuit before replacing fuses. Use an approved fuse puller when removing or installing cartridge fuses to avoid contact with energized components. Verify that the replacement fuse class, amperage, and voltage rating match the original circuit protection requirements before restoring power.
