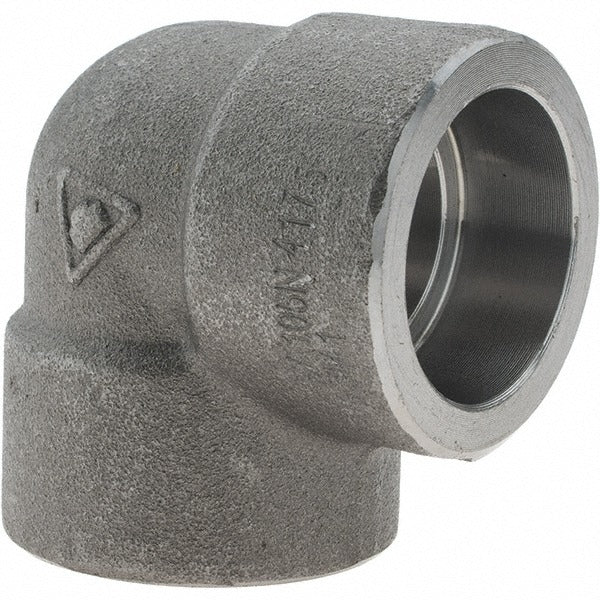

Value Collection BD--12171-5 90 Degree Elbow 1 Inch Class 3000

Product Description

The VALUE COLLECTION BD--12171-5 is a forged carbon steel 90 degree elbow fitting designed for high-pressure piping systems. It features a socket weld end connection and carries a Class 3000 pressure rating of 3000 psi, making it suitable for demanding industrial and commercial pipe installations. The black finish is standard for this fitting type. This part is sold in a package quantity of 3 and is installed by licensed pipefitters, plumbers, and mechanical contractors working on pressure piping systems.

This elbow is used in socket weld piping assemblies where a 90 degree change in flow direction is required. The Class 3000 rating makes it appropriate for steam, gas, and liquid service lines operating at elevated pressures. Typical applications include industrial process piping, mechanical room installations, and commercial plumbing systems requiring forged steel fittings.

Key Features

• Forged carbon steel construction for strength in high-pressure service
• 90 degree elbow geometry for directional changes in pipe runs
• Socket weld end connections for full-penetration weld joints
• Class 3000 rating with 3000 psi liquid and gas pressure capacity
• Black finish standard for carbon steel pipe fittings
• Sold in a pack of 3 units per package

Compatibility

Designed as an OEM-style replacement or new-installation socket weld fitting for 1 inch forged carbon steel pipe systems rated at Class 3000.

Installation Notes

Installation should be performed by a licensed pipefitter or plumber in accordance with applicable mechanical and pressure piping codes. De-energize or depressurize the system completely before cutting into any existing pipe run. Socket weld fittings require proper fit-up and a full circumferential fillet weld per applicable welding procedures. Follow ASME B16.11 and applicable facility or jurisdictional codes for socket weld fitting installation.
