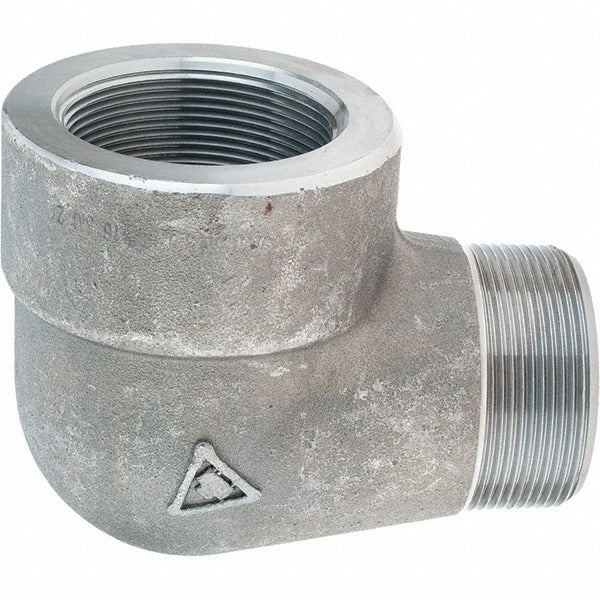

Value Collection BD--12146-8 90 Degree Street Elbow 2 in

Product Description

The VALUE COLLECTION BD--12146-8 is a 90-degree street elbow fitting designed for high-pressure piping systems in industrial, commercial, and mechanical applications. Manufactured from forged carbon steel with a black finish, this fitting is rated Class 3000 with a liquid and gas pressure rating of 3000 psi. The 2-inch NPT end connections allow it to thread directly into pipe or fittings on both ends. It is installed by licensed plumbers, pipefitters, and mechanical contractors working on gas distribution, steam, hydraulic, or high-pressure water lines where a reliable directional change is required.

This street elbow is suited for high-pressure industrial and commercial piping installations where a 90-degree change of direction is needed without an additional nipple. The male NPT end threads directly into a female-threaded fitting, while the female end accepts a male-threaded pipe or fitting. Typical applications include compressed air headers, gas supply mains, steam lines, and hydraulic service piping. The forged carbon steel construction withstands elevated pressures and mechanical stress common in heavy-duty mechanical rooms and process piping environments.

Key Features

• Forged carbon steel construction for strength and durability in high-pressure service
• Class 3000 pressure rating with 3000 psi liquid and gas pressure capacity
• 2-inch NPT end connections for standard threaded pipe compatibility
• 90-degree street elbow design eliminates need for a separate nipple at one end
• Black finish suitable for gas, steam, compressed air, and hydraulic service
• Sold in a package quantity of 2

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch Class 3000 NPT threaded piping systems using forged carbon steel fittings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes including ASME B16.11 and local mechanical or plumbing codes. Depressurize and isolate the piping system completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to all NPT threads before assembly. Do not over-tighten threaded connections, as this can crack fittings or damage threads.
