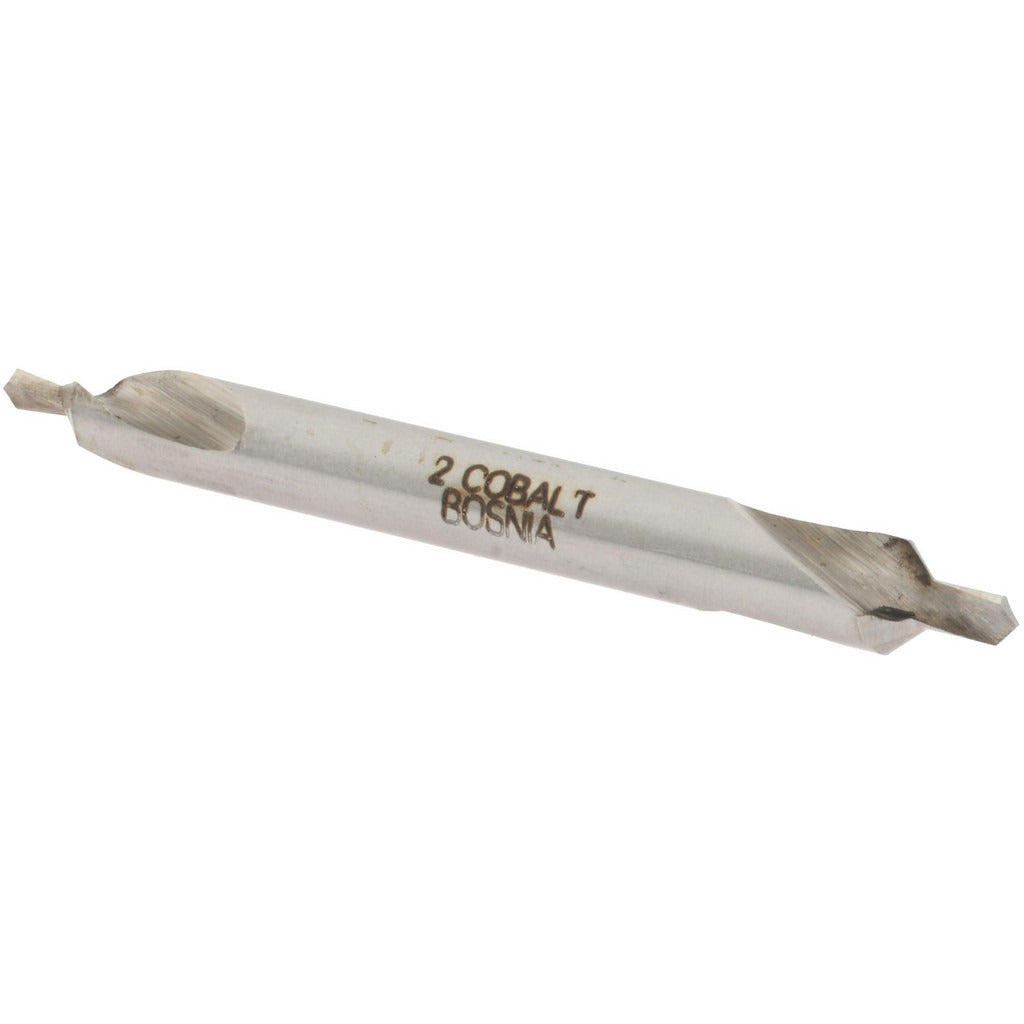

Value Collection BC11P0002 Combo Drill Countersink Cobalt

Product Description

The VALUE COLLECTION BC11P0002 is a combination drill countersink designed for creating pilot holes and countersunk seats in a single operation. Machined from cobalt steel with a bright uncoated finish, it delivers solid heat and wear resistance suited to harder workpiece materials. The 90-degree included angle and plain cutting edge produce clean, consistent countersunk recesses. The double-end configuration extends usable tool life by providing two cutting ends. At 1.875 inches overall length and a 0.1875-inch body diameter, it fits standard drill chucks and is sized for precision work in tight locations.

This combo drill countersink is used in metal fabrication, aerospace prep work, and general machining applications where a flat-head fastener seat must be formed flush with or below the workpiece surface. The right-hand cut suits conventional drilling setups. With a 5/64-inch point diameter and 5/64-inch point length, it is suited for smaller fastener sizes and light-to-medium stock. Machinists and tool-and-die technicians are the primary users in shop and field environments.

Key Features

• Cobalt steel construction for improved heat resistance and extended tool life in harder materials
• 90-degree included angle for standard flat-head fastener countersinking
• Double-end design provides two usable cutting ends per tool
• Bright uncoated finish maintains dimensional accuracy without coating buildup
• Plain cutting edge style for clean, consistent seat geometry
• Right-hand cut compatible with standard drill press and hand-drill setups

Compatibility

Designed as an OEM-style replacement or direct-use combo drill countersink for standard drill chucks accepting 3/16-inch shank tooling in countersinking applications.

Installation Notes

Install and remove this tool only with the drilling machine fully powered off and the chuck secured. Use appropriate work-holding to prevent workpiece movement during the countersinking operation. Cutting fluid or cutting oil is recommended when working with harder alloys to manage heat buildup at the tip. Inspect both cutting ends for chipping or wear before each use.
