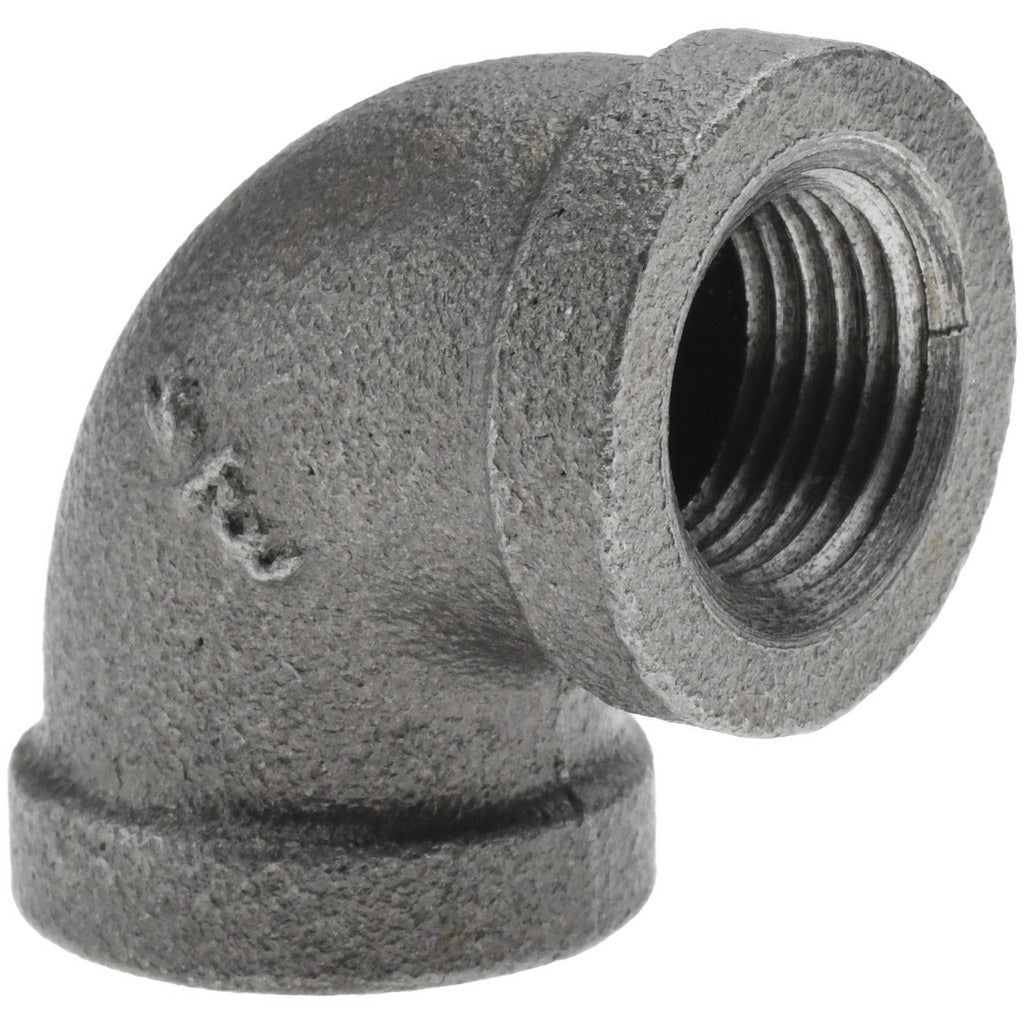

Value Collection B90 10 90 Degree Reducing Elbow 3/8 in

Product Description

The VALUE COLLECTION B90 10 is a black malleable iron 90 degree reducing elbow designed for threaded pipe assemblies in plumbing, gas, and mechanical systems. Rated at Class 150 with a 300 psi liquid and gas pressure rating, this fitting handles standard service pressure requirements in both residential and light commercial installations. The black finish is typical for gas line applications. Weighing 0.18 pounds, it is a compact fitting sized at 3/8 inch and is installed by licensed plumbers, pipefitters, and gas technicians working with threaded black iron pipe systems.

This elbow is suited for low-pressure gas distribution, compressed air lines, water service, and general mechanical piping where a directional change is required at a reduced outlet. The 90 degree turn with a reducing configuration allows a transition in pipe diameter within the same fitting, reducing the need for additional couplings. It is commonly used in residential gas appliance hookups, commercial HVAC gas trains, and plumbing rough-in work where space and fitting count are a consideration.

Key Features

• Malleable iron construction with black finish suitable for gas and water service
• Class 150 rated with 300 psi liquid and gas pressure rating
• 90 degree reducing elbow combines directional change and diameter reduction in one fitting
• Threaded end connections for standard NPT pipe assembly
• Meets multiple certifications including NSF/ANSI 61, NSF/ANSI 372, FM Approved, and cULus Listed
• Lightweight at 0.18 pounds for easy single-hand installation in tight spaces

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/8 inch threaded black malleable iron pipe systems rated at Class 150.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or gas technician in accordance with applicable codes including the International Plumbing Code or International Fuel Gas Code. Shut off and depressurize the supply line completely before removing or installing any threaded fittings. Apply an approved thread sealant or pipe tape to male threads before assembly and tighten to hand-tight plus wrench-tight without over-torquing the malleable iron body. For gas applications, verify all joints with an approved leak detection solution after pressurizing the system.
