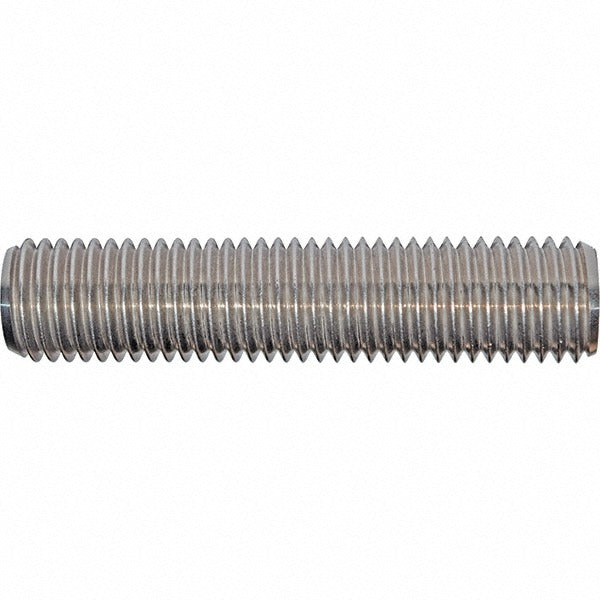

Value Collection B8MSTFE0750C700 Threaded Stud 3/4-10

Product Description

The VALUE COLLECTION B8MSTFE0750C700 is a fully threaded stud in 316 stainless steel, designed for use in bolted assemblies where full thread engagement along the entire length is required. This stud features a 3/4-10 UNC thread form with a Class 2A external thread fit, providing standard clearance tolerances for reliable mating with Class 2B nuts and tapped holes. The overall length is 7 inches with thread running the full length, conforming to ASTM B8M standards for austenitic stainless steel fasteners. At 0.75 pounds, it is suited for structural, mechanical, and process-piping applications where corrosion resistance is a priority.

This fully threaded stud is commonly used in industrial, commercial, and process-piping installations where stainless steel fasteners are required to resist corrosion from moisture, chemicals, or environmental exposure. Typical applications include flanged pipe connections, pressure vessel assembly, equipment mounting, and marine or chemical processing environments. The right-hand thread direction and uncoated plain finish make it compatible with standard tooling and installation practices. Millwrights, pipefitters, and maintenance technicians routinely specify 316 stainless fully threaded studs in corrosive-service and sanitary environments.

Key Features

• Full-length 3/4-10 UNC thread provides maximum engagement flexibility for varied stack heights
• 316 stainless steel construction offers superior resistance to chlorides and acidic environments
• Class 2A thread fit conforms to standard clearance tolerances for reliable nut mating
• Meets ASTM B8M standard for austenitic stainless alloy bolt and stud fasteners
• Right-hand thread direction compatible with standard tooling and installation hardware
• Uncoated plain finish suitable for direct use or field passivation as required

Compatibility

Designed for use with standard 3/4-10 UNC Class 2B nuts, couplings, and tapped components in corrosive-service or industrial fastening applications requiring ASTM B8M 316 stainless steel fasteners.

Installation Notes

Installation is typically performed by pipefitters, millwrights, or maintenance technicians using standard hex or socket tooling. Torque the mating nut evenly and in sequence when used in multi-bolt flanged connections to ensure uniform gasket compression. Apply an appropriate anti-seize compound compatible with stainless steel to prevent galling between stainless mating surfaces. Verify thread class compatibility with the receiving component before installation.
