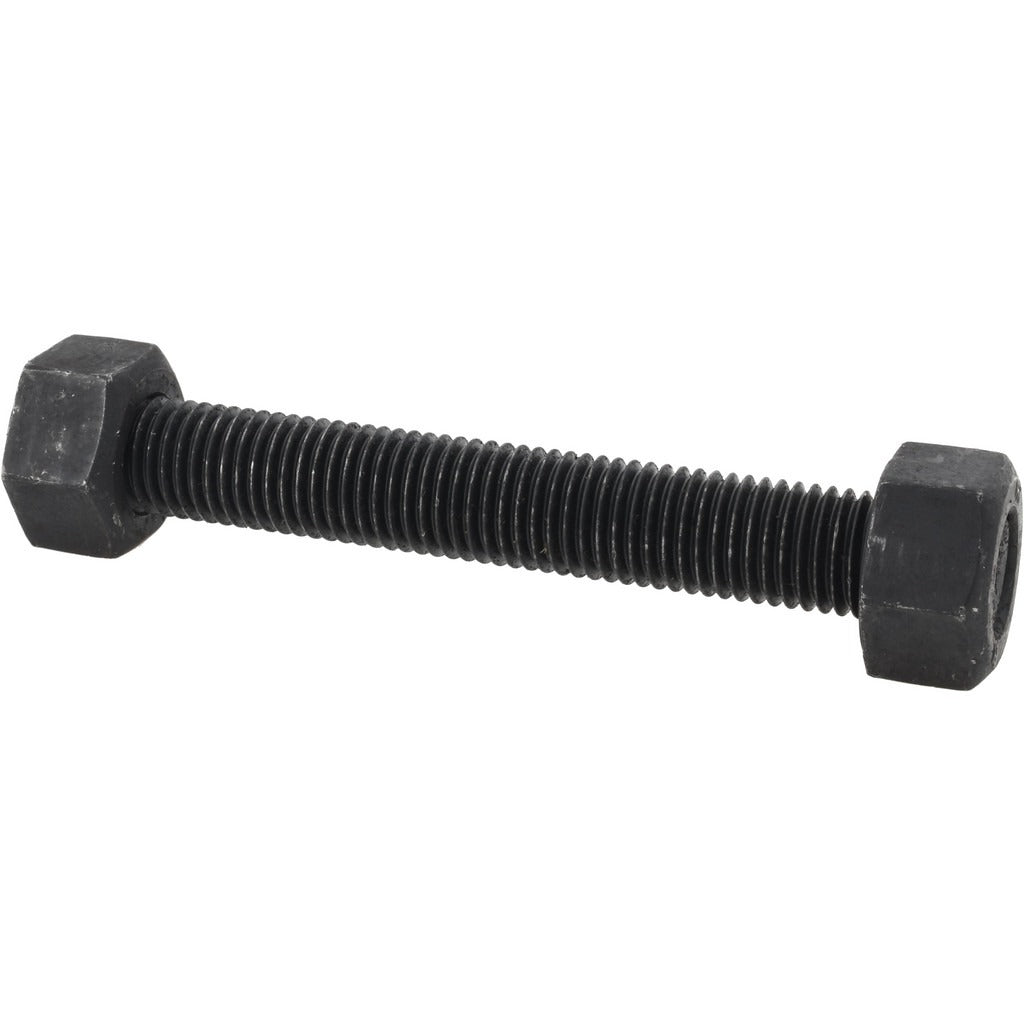

Value Collection B7SN0630475CP Threaded Stud Nut 5/8-11 Grade B7

Product Description

The VALUE COLLECTION B7SN0630475CP is a fully threaded stud and nut assembly manufactured from Grade B7 alloy steel with an uncoated finish. Each stud measures 5/8-11 thread size and 4-3/4 inches in length. The 7B class of fit provides a controlled thread engagement suitable for structural and high-strength fastening applications. This package includes four studs and eight nuts, conforming to ASTM A193 standards. Licensed trades and maintenance professionals use these assemblies when a bolt-free, double-nut fastening method is required, such as flange connections, pressure vessel work, and heavy equipment mounting.

These studs are suited for industrial, mechanical, and structural applications where ASTM A193 Grade B7 material is specified. Common use cases include pipe flange bolting, equipment base plates, and high-load structural connections in both commercial and industrial settings. The fully threaded design allows for flexible nut positioning along the entire stud length, accommodating varying material thicknesses in the assembly stack.

Key Features

• Grade B7 alloy steel construction meets ASTM A193 specification for high-strength fastener applications
• 5/8-11 UNC thread size with 7B class of fit for controlled thread tolerance
• Fully threaded along the 4-3/4 inch length for maximum nut positioning flexibility
• Uncoated finish suitable for use with field-applied coatings or in dry indoor environments
• Each package includes four studs and eight nuts, ready for installation

Compatibility

Designed as a standard 5/8-11 UNC fully threaded stud conforming to ASTM A193 Grade B7, compatible with any application requiring that thread size, thread class, and material grade specification.

Installation Notes

Installation should be performed by qualified mechanical or industrial tradespeople familiar with ASTM A193 fastener requirements. Ensure mating tapped holes or nuts match the 5/8-11 UNC, 7B class of fit specification before assembly. Follow applicable codes and engineering drawings for required fastener preload and torquing procedures. Clean all mating surfaces and inspect threads for damage before assembly.
