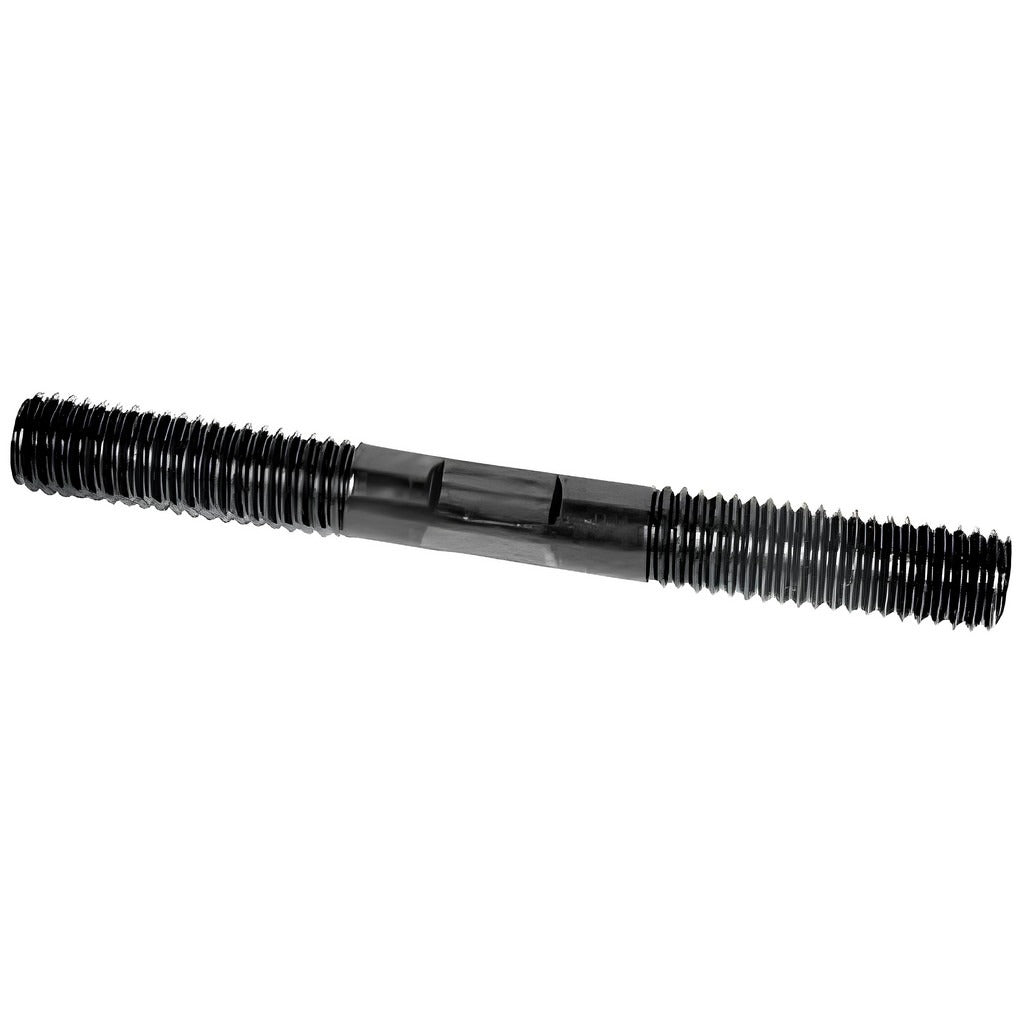

Value Collection B7S075C660 Threaded Stud 3/4-10 6.5in

Product Description

The VALUE COLLECTION B7S075C660 is a fully threaded stud machined from Grade B7 alloy steel with an uncoated finish. It carries a 3/4-10 UNC thread form across its entire 6.5-inch overall length and is manufactured to Thread Fit Class 2A tolerances, which specifies a standard external thread fit for general industrial and mechanical fastening applications. Because the stud is threaded end-to-end, it can be cut to length or used as-is in through-hole and double-nut configurations. Machinists, millwrights, pipefitters, and maintenance technicians install this type of hardware in flanged joints, equipment mounts, and structural assemblies.

This stud is suited for industrial, commercial, and trade applications where a high-strength, full-length threaded fastener is required. Common use cases include pipe flange bolting, machinery base plate mounting, and fabrication work where custom bolt length is needed. The Grade B7 material designation indicates a medium-carbon alloy steel with elevated tensile strength, making it a frequent choice for pressure vessel, structural, and heavy equipment connections where standard Grade 5 or Grade 8 fasteners are not specified.

Key Features

• Fully threaded along the entire 6.5-inch length for maximum installation flexibility
• 3/4-10 UNC thread size with Class 2A external thread fit tolerance
• Grade B7 alloy steel construction for elevated tensile strength
• Uncoated finish — no plating or coating that could affect thread tolerances or dimensional fit
• Sold individually, quantity of one per unit

Compatibility

Designed as a general-purpose fully threaded stud for industrial and mechanical fastening applications requiring a 3/4-10 UNC thread and 6.5-inch overall length.

Installation Notes

Installation is typically performed by millwrights, pipefitters, or maintenance mechanics using standard open-end or socket wrenches and appropriate 3/4-10 UNC nuts and washers. Always verify that mating threaded holes or nuts match the 3/4-10 UNC thread specification and Class 2A fit before installation. De-energize and lock out any equipment before inserting or removing fasteners in live machinery or pressurized systems. Follow applicable torque specifications from the equipment manufacturer or relevant codes such as ASME or AISC for structural and pressure-boundary joints.
