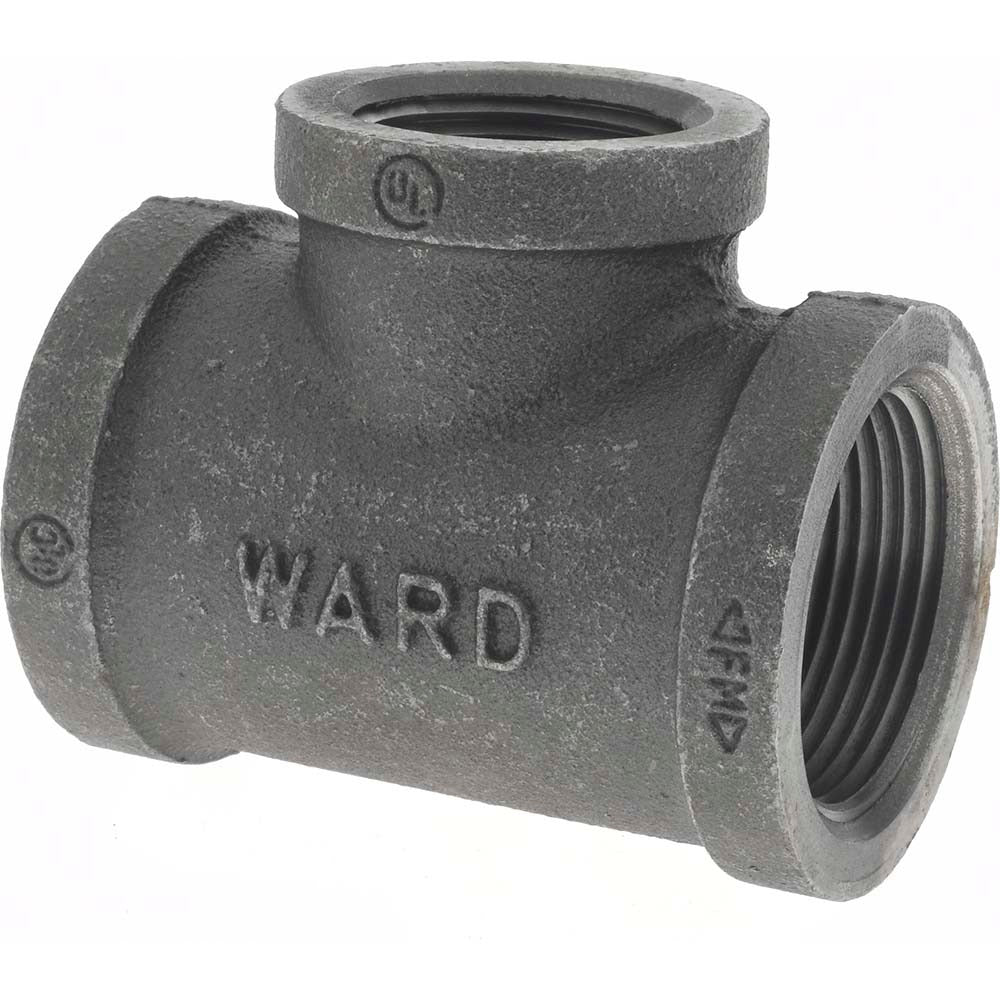

Value Collection B130R 32X25 Black Iron Tee Reducer

Product Description

The VALUE COLLECTION B130R 32X25 is a black malleable iron tee reducer fitting designed for threaded pipe systems operating in gas and liquid service. With a Class 150 pressure rating and a liquid and gas pressure rating of 300 psi, this reducer handles demanding residential and commercial piping applications. The tee configuration allows for a branch connection while simultaneously reducing the run or outlet, making it a practical choice wherever pipe diameter changes and branch tees occur in the same fitting. Licensed tradespeople in plumbing, pipefitting, and mechanical contracting are the primary installers of this type of fitting.

This fitting is sized at 1-1/4 x 1-1/4 x 1 inches with threaded end connections on all ports. It is suited for use in black iron gas distribution piping, fire protection support systems, and general industrial or commercial piping where malleable iron fittings are required. The black finish is standard for gas-line piping and provides basic corrosion resistance in dry indoor environments. This fitting is sold individually.

Key Features

• Malleable iron construction rated for 300 psi liquid and gas service
• Class 150 classification for standard threaded iron pipe systems
• Tee-shaped reducer combines branch and reduction in a single fitting
• Threaded end connections on all ports for tool-based assembly
• Black finish standard for gas piping and indoor mechanical systems
• Multi-standard certified: ABNT, EN 10242, FM Approved, GB/T 3287, GB/T 7306.2, ISO 7/1, cULus Listed

Compatibility

Designed as an OEM-style replacement and standard-use fitting for Class 150 threaded malleable iron pipe systems in residential and commercial gas, plumbing, and mechanical piping applications.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or gas fitter in accordance with applicable local codes, IFGC, and ANSI standards for threaded iron pipe. Shut off gas or fluid supply and verify zero pressure before removing or installing any fitting. Apply appropriate thread sealant or PTFE tape rated for the service medium to all male threads before assembly. Do not over-tighten threaded connections, as malleable iron fittings can crack under excessive torque.
