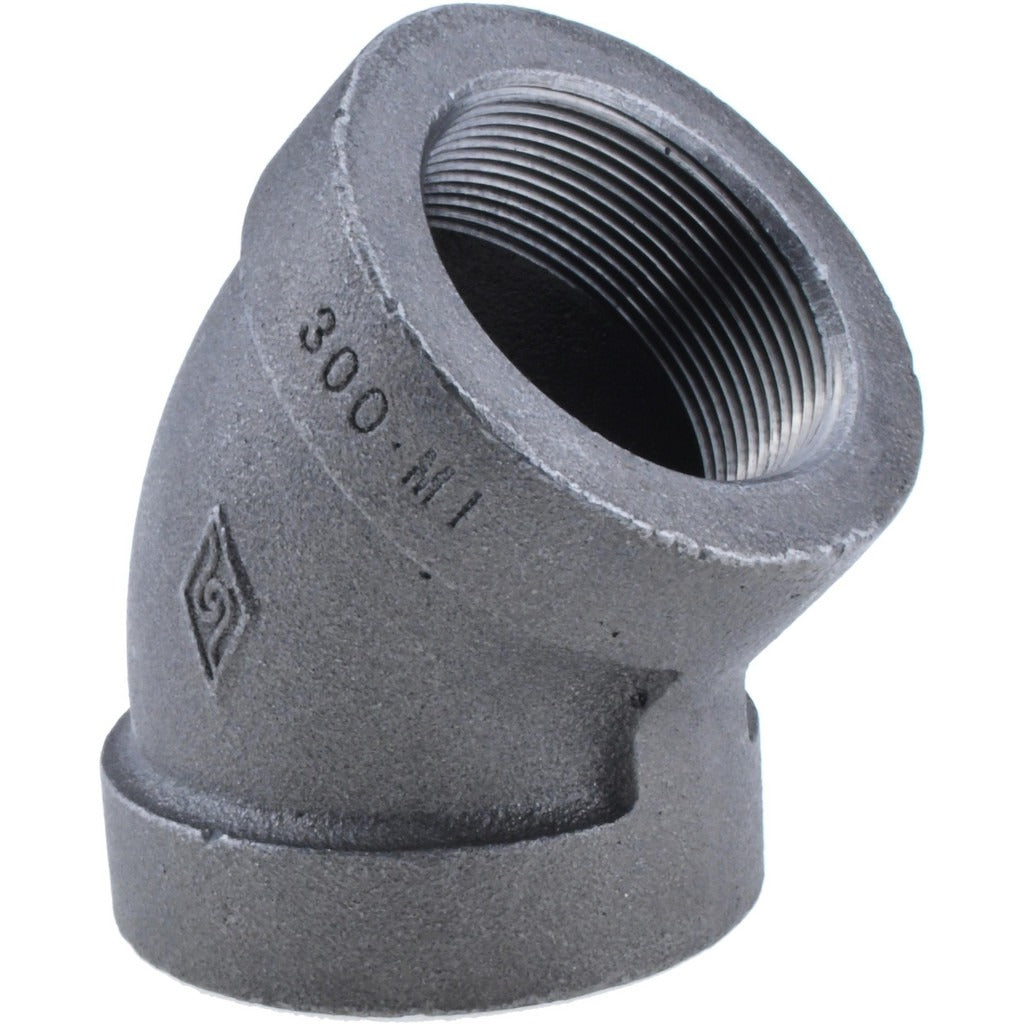

Value Collection B120 50 300 45 Degree Elbow 2 in Threaded

Product Description

The VALUE COLLECTION B120 50 300# is a 45-degree threaded malleable iron elbow designed for use in black iron piping systems carrying gas, steam, air, or liquid media. The fitting is manufactured to Class 300 standards and carries a pressure rating of 1500 psi, making it suitable for moderate- to high-pressure service applications. The black finish is standard for gas and steam distribution use. At 2 inches, this elbow handles a common line size found in commercial and light industrial installations. Installation is performed by licensed plumbers, pipefitters, or gas fitters working within applicable code requirements.

This fitting is used in threaded black iron piping runs where a 45-degree directional change is required. Typical applications include natural gas distribution, steam lines, compressed air systems, and hydraulic fluid conveyance in commercial and industrial settings. The Class 300 pressure rating expands its suitability beyond standard Class 150 fittings, making it a preferred choice when system design calls for higher working pressures. The 2-inch size accommodates main distribution runs as well as branch connections in larger piping systems.

Key Features

• 45-degree elbow geometry for angled directional changes in threaded pipe runs
• Class 300 pressure rating with 1500 psi liquid and gas pressure capacity
• Malleable iron construction provides strength and resistance to mechanical stress
• Threaded end connections conform to ISO 7/1 taper thread standard
• Compliant with EN 10242 and Enterprise Standard specifications
• Black finish suitable for gas and steam service applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch threaded black iron piping systems requiring Class 300 fittings conforming to EN 10242 and ISO 7/1 thread standards.

Installation Notes

This fitting is installed by licensed plumbers, pipefitters, or gas fitters in accordance with applicable codes including the IFGC and ASME B31 piping standards. Shut off and bleed the piping system completely before removing any existing fittings or assembling new connections. Apply an approved pipe thread sealant or PTFE tape rated for the service medium before making up threaded joints. Do not over-tighten; hand-tight plus wrench turns per standard practice for the pipe size is sufficient to achieve a leak-free joint without cracking the fitting.
