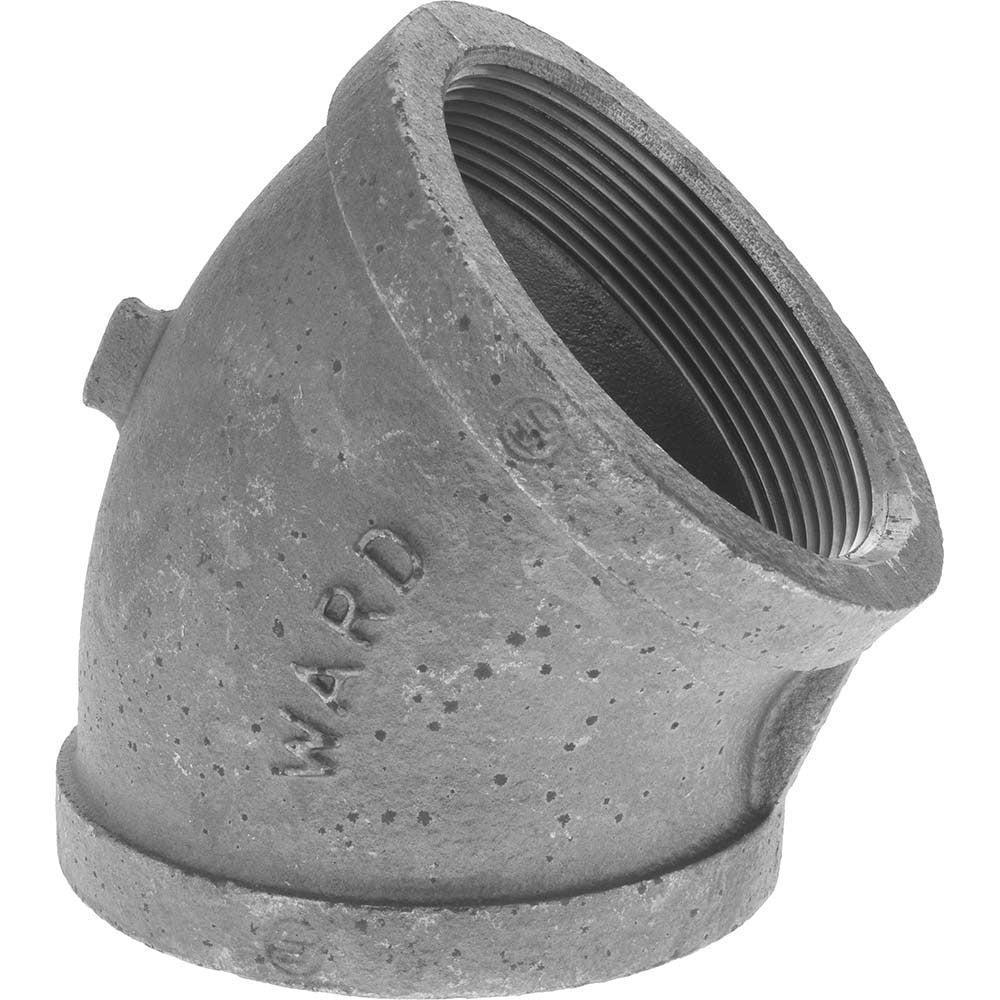

Value Collection B120 100 Malleable Iron 45 Elbow 4 in

Product Description

The VALUE COLLECTION B120 100 is a 4-inch, Class 150 malleable iron black pipe 45-degree elbow designed for directional changes in threaded pipe systems. Rated at 150 psi, this fitting accepts standard threaded connections on both ends and is finished in black to resist corrosion in typical service environments. The malleable iron construction provides the impact resistance and ductility required for gas distribution, fire protection, and industrial piping applications. Plumbers, pipefitters, and mechanical contractors use this fitting as a standard component in threaded black iron piping systems.

This elbow is used in residential and commercial piping installations where a 45-degree directional change is required. Common applications include natural gas supply lines, propane distribution piping, steam and hydronic heating systems, and general industrial fluid conveyance. The threaded end connections allow it to be assembled without welding or special tooling, making it suitable for field installations and service work. It is sized at 4 inches to match standard Schedule 40 pipe and fittings in the same class and material.

Key Features

• 4-inch fitting size for use with standard Schedule 40 threaded black iron pipe
• Class 150 pressure rating at 150 psi for gas, steam, and fluid service
• Malleable iron construction provides ductility and resistance to cracking under stress
• Black finish suited for gas piping and non-potable fluid applications
• Threaded end connections for tool-only assembly without welding
• Meets EN 10242, ISO 7/1, and applicable enterprise standards

Compatibility

Designed as an OEM-style replacement and standard-fit component for Class 150 threaded malleable iron pipe systems using 4-inch nominal pipe size.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and fuel gas codes, including the IFGC and IPC where relevant. Shut off and depressurize the pipe system fully before disassembling or installing any threaded fittings. Apply a listed pipe thread sealant or PTFE tape rated for the intended service medium to all threaded joints before makeup. Do not overtighten connections, as malleable iron threads can crack under excessive torque.
