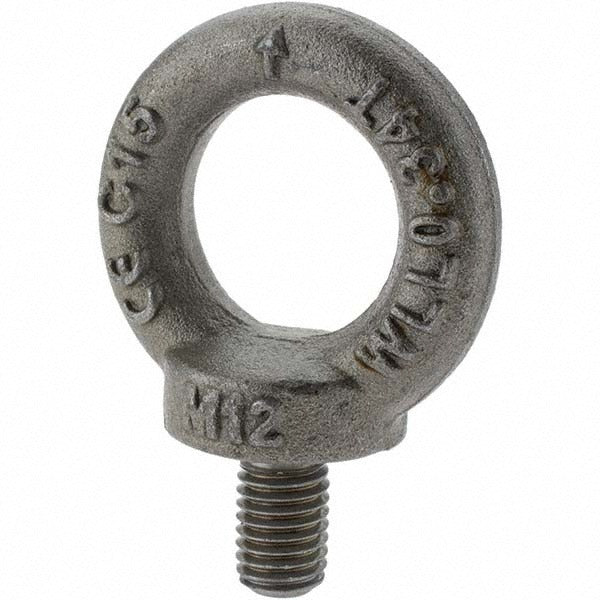

Value Collection B10780 Fixed Eye Bolt M12 X 1.75 Grade 1015

Product Description

The VALUE COLLECTION B10780 is a fixed lifting eye bolt with shoulder, designed for use with M12 x 1.75 metric thread. Constructed from Grade 1015 steel, this eye bolt is fully threaded along its 21 mm shank and is engineered for overhead and rigging lifting applications. The shoulder design provides a stable bearing surface against the workpiece, helping to keep the eye oriented and load forces properly distributed during lifts. With a rated lifting capacity of 340 kg, it is suited for light-to-medium industrial rigging, machinery positioning, and material handling tasks performed by millwrights, maintenance technicians, and rigging professionals.

This eye bolt is intended for use in industrial facilities, manufacturing floors, and maintenance environments where metric-threaded lifting points are required. Its fully threaded shank and shoulder design make it appropriate for installation into tapped holes in machinery frames, structural members, and equipment housings. Sold in a package quantity of 5, it is a practical stocking item for shops and tool cribs that regularly need metric lifting hardware on hand.

Key Features

• Fixed eye orientation with shoulder for stable, consistent load alignment
• Rated lifting capacity of 340 kg for light-to-medium rigging tasks
• M12 x 1.75 metric thread, fully threaded along the shank
• Grade 1015 steel construction for durability in industrial environments
• Eye inside diameter of 30 mm accommodates standard shackles and hooks
• Packaged in quantities of 5 for convenient stocking

Compatibility

Designed for use in any application requiring a metric M12 x 1.75 threaded lifting point with a shouldered eye bolt, including tapped holes in machinery, structural steel, and equipment enclosures.

Installation Notes

Installation should be performed by qualified rigging or maintenance personnel following applicable ASME B30 rigging standards and facility safety protocols. Ensure the receiving hole is properly tapped to M12 x 1.75 specification and that the shoulder seats fully and flush against the workpiece surface before applying any load. Never exceed the rated lifting capacity, and inspect the eye bolt for deformation, thread damage, or corrosion before each use. Fixed eye bolts should only be used with loads applied in line with the plane of the eye.
