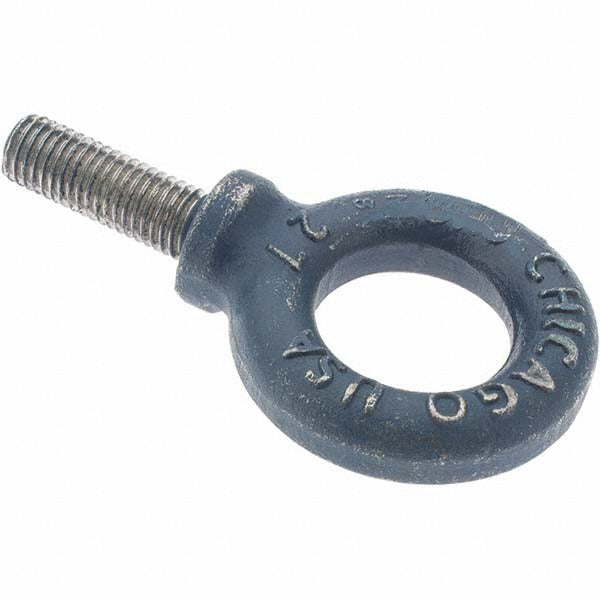

Value Collection B10772 Fixed Lifting Eye Bolt M14x2

Product Description

The VALUE COLLECTION B10772 is a fixed lifting eye bolt with a shoulder, designed for use in rigging, lifting, and load-securing applications. Built from C15 grade steel with full threading along its 27 mm shank, this eye bolt delivers a rated lifting capacity of 1,596 kilograms. The M14 x 2.00 metric thread and shouldered base provide stable, flush seating against the mating surface to resist angular loading. Rigging professionals, millwrights, and maintenance crews install this type of hardware during machinery positioning, overhead lifting, and structural tie-down work.

This eye bolt is suited for industrial and commercial lifting operations where a fixed, non-swiveling anchor point is required. The shouldered design distributes load stress at the contact surface, making it appropriate for use with hoists, cranes, wire rope, and chain rigging hardware. It ships in a package quantity of five units, making it practical for job-site kitting or inventory stocking.

Key Features

• Fixed eye design provides a rigid, non-rotating anchor point for consistent load alignment
• Shoulder type construction seats flush against the work surface to reduce bending stress at the thread root
• Rated lifting capacity of 1,596 kg supports medium-duty overhead and rigging applications
• Fully threaded shank with M14 x 2.00 metric thread for broad hardware compatibility
• C15 grade steel construction for strength and durability in industrial environments
• Eye inside diameter of 35 mm accommodates standard hooks, shackles, and rigging hardware

Compatibility

Designed as a standard metric fixed lifting eye bolt suitable for use with M14 x 2.00 threaded bores in industrial machinery, structural steel, and lifting fixture applications.

Installation Notes

Installation is typically performed by qualified rigging personnel or millwrights in accordance with applicable ASME B30 or OSHA rigging safety standards. Thread the bolt fully into a clean, undamaged tapped hole until the shoulder seats firmly against the surface before applying any load. Never side-load a fixed eye bolt beyond the rated capacity, and inspect threads and the eye for deformation or wear before each lift. De-energize and lock out any associated machinery before installing or removing lifting hardware.
