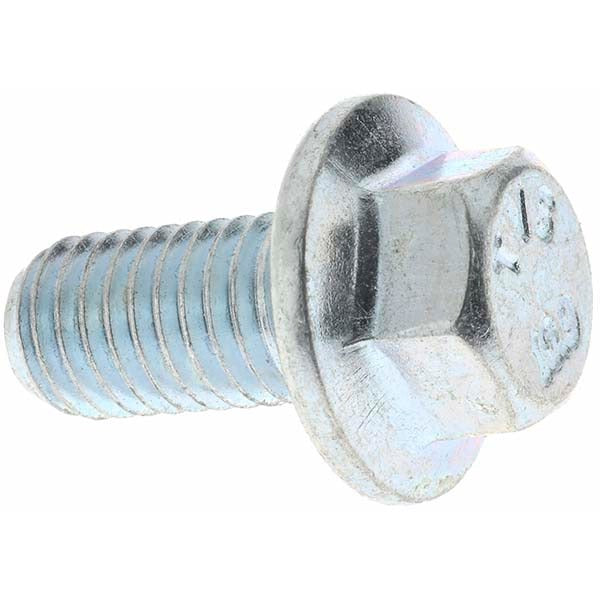

Value Collection B10627 Flange Bolt M10x1.5 20mm Grade 10.9 25-pack

Product Description

The VALUE COLLECTION B10627 is a smooth flange bolt in M10 x 1.5 metric thread, fully threaded along its 20 mm length under head. The integrated smooth flange measures 22.3 mm in diameter and distributes clamping load across a wider bearing surface, reducing the need for a separate washer. Manufactured from Grade 10.9 alloy steel with a zinc-plated finish, this fastener delivers high tensile strength and corrosion resistance suitable for structural and mechanical assembly applications. It conforms to DIN 6921 and DIN ISO 898-1 standards. Each package contains 25 bolts and is sized for a 14.73 to 15.00 mm hex drive.

This bolt is suited for metal fabrication, machinery assembly, automotive, and industrial maintenance work where a metric high-strength fastener with a built-in flange is required. The fully threaded design allows engagement along the entire shank, making it effective in thin-stock and through-bolt applications. The zinc plating provides moderate corrosion protection for indoor and light-duty outdoor environments. Professionals working to DIN fastener standards will find this bolt a direct-fit option for metric assemblies requiring Grade 10.9 clamping force.

Key Features

• M10 x 1.5 metric thread, fully threaded over 20 mm length under head
• Smooth flange diameter of 22.3 mm distributes load without a separate washer
• Grade 10.9 alloy steel for high tensile strength in structural applications
• Zinc-plated finish for corrosion resistance
• Conforms to DIN 6921 and DIN ISO 898-1 standards
• Hex drive sized 14.73 to 15.00 mm; compatible with standard metric hex tooling

Compatibility

Designed as a DIN 6921-compliant metric flange bolt for use in any M10 x 1.5 threaded application requiring Grade 10.9 tensile strength and a smooth integral flange bearing surface.

Installation Notes

Installation is performed with a standard metric hex wrench or socket sized to 14.73 to 15.00 mm. Verify thread engagement depth and mating thread condition before torquing. Do not mix metric and unified inch fasteners in the same assembly. Follow applicable industry or equipment torque specifications for Grade 10.9 M10 fasteners as defined by the governing mechanical or structural standard for the application.
