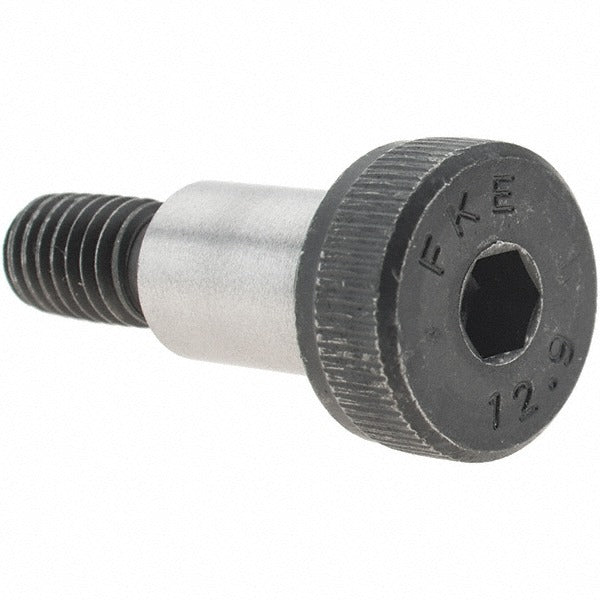

Value Collection B10109 Shoulder Screw M6x1.00 Alloy Steel

Product Description

The VALUE COLLECTION B10109 is a metric shoulder screw designed for precision fastening applications where a controlled-diameter shoulder is required to act as a bearing surface, pivot point, or guide. The shoulder measures 8 mm in diameter and 12 mm in length, with an M6x1.00 threaded end. Constructed from Grade 8 alloy steel, this screw delivers high tensile strength suited for demanding mechanical assemblies. The hex socket drive allows for torque application with a standard Allen wrench or hex bit driver in confined spaces where a traditional wrench cannot be used.

Shoulder screws of this configuration are commonly used in jigs, fixtures, die sets, and machinery linkages where a smooth, hardened shaft is needed to support rotating or sliding components. The M6x1.00 metric thread and 8 mm shoulder diameter make this screw appropriate for light-to-medium-duty industrial assemblies. Machinists, toolmakers, and maintenance technicians are the primary installers. This part is sold in a package quantity of 10 units.

Key Features

• 8 mm shoulder diameter provides a precise bearing or pivot surface
• 12 mm shoulder length suits shallow-bore and thin-plate assembly applications
• M6x1.00 metric thread for reliable engagement in standard metric tapped holes
• Grade 8 alloy steel construction for high tensile and shear strength
• Hex socket drive allows installation in restricted-access locations
• Sold in a package of 10 for bench-stock or production use

Compatibility

Designed as a standard metric shoulder screw for use in mechanical assemblies, tooling, and fixtures requiring an 8 mm shoulder diameter and M6x1.00 thread engagement.

Installation Notes

Installation requires a hex key or Allen bit driver sized to the socket. Ensure the mating tapped hole is clean and the thread standard matches the M6x1.00 specification before installation. Do not use an impact driver at full torque, as this may damage the socket or over-stress the threaded portion. Degrease mating surfaces if the shoulder is used as a bearing or guide surface for sliding components.
