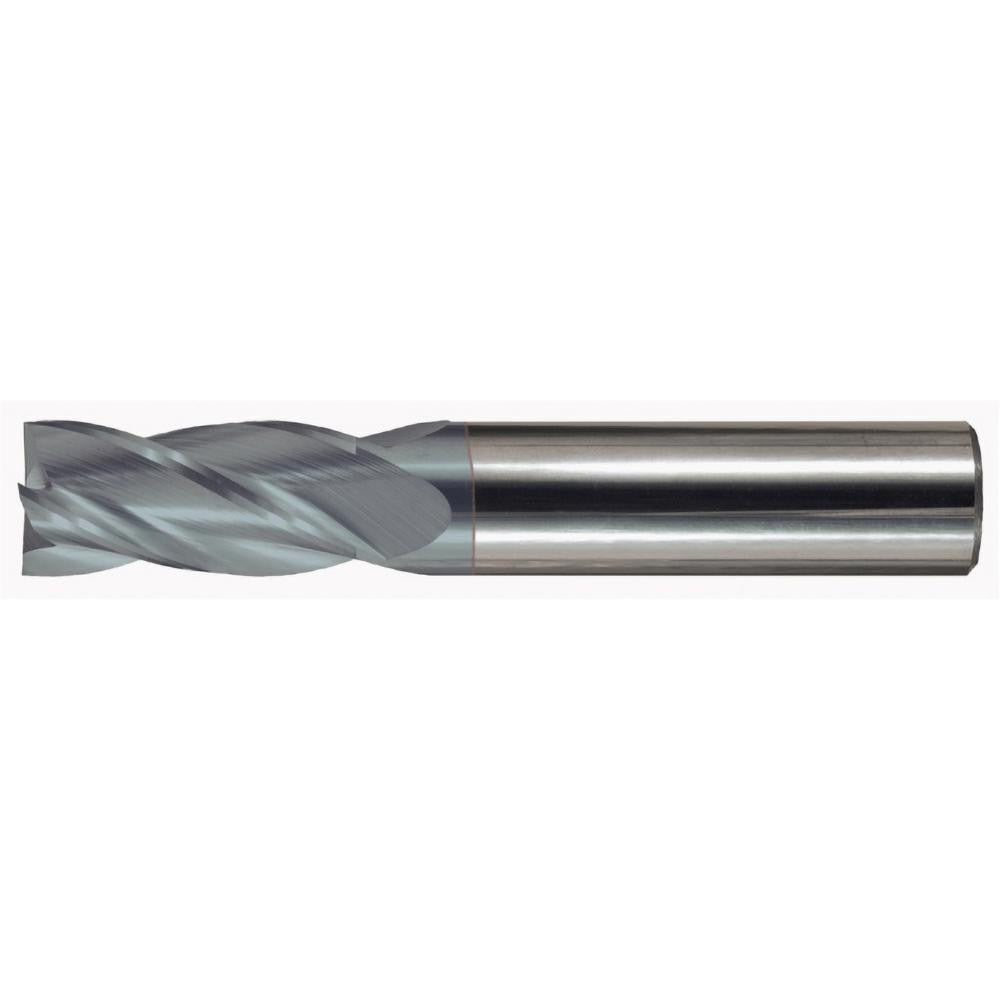

Value Collection B01476 Square End Mill 5/64 in 4 Flute

Product Description

The VALUE COLLECTION B01476 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. With a 5/64-inch (0.0781-inch) cutting diameter and a 4-flute spiral geometry, this single-end tool delivers clean, accurate cuts in a compact form factor. The TiCN coating provides enhanced wear resistance and surface hardness, extending tool life in demanding materials. The micrograin carbide substrate supports rigidity and edge retention at high feed rates. This tool is intended for use by machinists and tool-and-die professionals working on CNC or manual milling equipment.

This end mill is suited for milling operations in steel, cast iron, aluminum and non-ferrous metals, and high-temperature alloys. Its regular-length configuration and 1/8-inch straight shank make it a practical choice for close-tolerance finishing passes and slot milling in tight workpiece geometries. The right-hand cutting and right-hand flute direction are standard for conventional milling setups. Center-cutting capability allows plunge entry directly into the workpiece without pre-drilling.

Key Features

• TiCN coating for improved wear resistance and longer tool life across varied workpiece materials
• 4-flute spiral design supports higher feed rates and improved surface finish compared to 2-flute configurations
• Center-cutting geometry allows direct plunge milling without a pre-drilled entry point
• Micrograin solid carbide construction provides rigidity and sharp edge retention
• 30-degree helix angle balances chip evacuation and cutting force across steel, cast iron, aluminum, and high-temp alloys
• Right-hand cut and right-hand flute direction compatible with standard spindle rotation on CNC and manual mills

Compatibility

Designed for use in milling applications involving steel, cast iron, aluminum and non-ferrous metals, and high-temperature alloys. Fits standard 1/8-inch collets or tool holders on CNC machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist. Secure the 1/8-inch straight shank in a properly sized collet or end mill holder and ensure adequate taper engagement before tightening. Confirm spindle direction is set to right-hand rotation before running. Inspect the cutting edges and coating condition before each use and replace the tool at the first sign of chipping or excessive flank wear.
