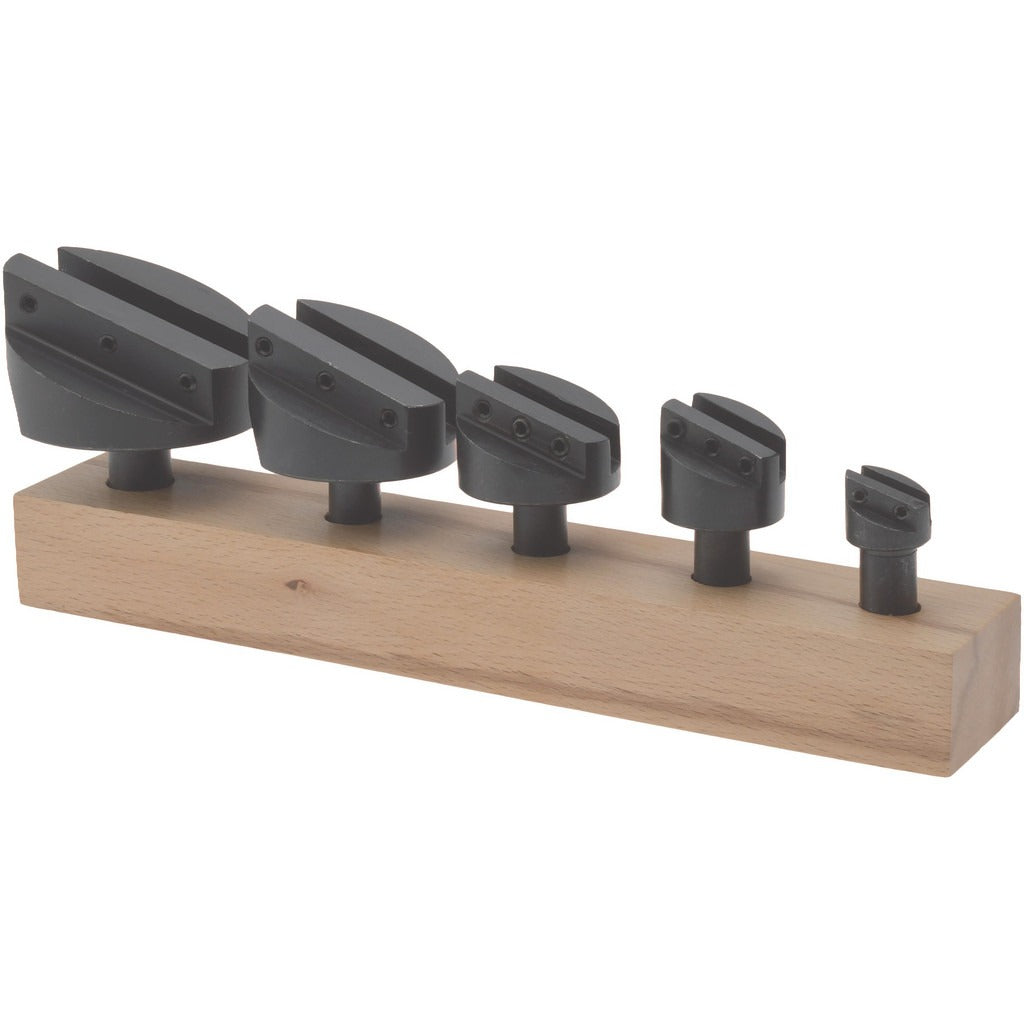

Value Collection ATF0489 5 Piece Fly Cutter Set

Product Description

The VALUE COLLECTION ATF0489 is a 5-piece fly cutter set designed for boring and facing operations on milling machines and drill presses. The set includes two shank diameters — 1/2 inch and 5/8 inch — and supports maximum head diameters ranging from 3/4 inch up to 2-1/2 inches, giving machinists and toolroom technicians a range of cutting diameters from a single set. Each cutter uses a straight shank for straightforward chuck or collet mounting. Tool bit capacity runs from 3/16 inch to 1/2 inch, and each cutter accepts one bit at a time. The set weighs 4.16 pounds.

This fly cutter set is suited for light to medium material removal on flat surfaces, spot facing, and large-diameter hole boring in metal, wood, or plastic workpieces. It is commonly used in machine shops, maintenance facilities, and vocational training environments. The range of head diameters makes it practical for jobs where a single fixed-diameter tool would require multiple setups. Machinists, toolmakers, and maintenance mechanics are the primary users of this type of set.

Key Features

• 5-piece set covering 1/2 inch and 5/8 inch shank diameters
• Maximum head diameter range from 3/4 inch to 2-1/2 inches
• Straight shank design for standard chuck or collet mounting
• Tool bit range from 3/16 inch to 1/2 inch per cutter
• Single bit per cutter configuration for straightforward setup
• UNSPSC Code 23242100

Compatibility

Designed as a general-purpose replacement and supplemental fly cutter set compatible with milling machines and drill presses that accept 1/2 inch or 5/8 inch straight shank tooling.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully powered down and the spindle lock is engaged before mounting or changing cutters. Verify chuck or collet clamping torque and tool bit set screw tightness before starting a cut. Always wear appropriate eye protection and follow applicable shop safety standards when operating fly cutters at speed.
