Value Collection ATF0480 Fly Cutter Straight Shank

Product Description

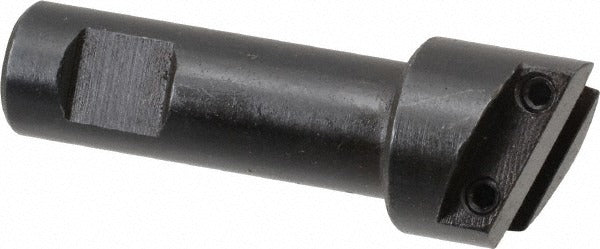

The VALUE COLLECTION ATF0480 is a straight-shank fly cutter designed for single-point face milling operations on milling machines and drill presses. The cutter features a 0.75-inch head diameter and accepts a 3/16-inch tool bit, with one bit position per cutter body. The 0.5-inch straight shank provides a standard, secure grip in collet chucks or drill press chucks. This tool is suited for machinists and tool-and-die professionals performing light face milling, spot facing, or surface finishing on ferrous and non-ferrous workpieces. At 0.5 pounds, it is a compact, single-piece cutter body built for bench-scale and production milling applications.

This fly cutter is intended for use in machine shop environments, vocational training facilities, and maintenance shops where face milling of flat surfaces is required. It is well suited for milling machines with 0.5-inch collet capacity or drill presses used for spot facing operations. Typical applications include surfacing small steel, aluminum, brass, or plastic workpieces where a single-point cutter provides clean, controlled material removal.

Key Features

• 0.75-inch head diameter for controlled single-point face milling
• Straight shank with 0.5-inch diameter fits standard collet chucks and drill press chucks
• Accepts one 3/16-inch tool bit per cutter body
• Lightweight at 0.5 pounds for easy handling and tool change
• Single-piece cutter body construction for rigid bit support

Compatibility

Designed as a standard straight-shank fly cutter compatible with milling machines and drill presses equipped with a 0.5-inch collet or chuck capacity.

Installation Notes

Installation is performed by a machinist or mill operator. Power down and lock out the machine spindle before mounting or removing the cutter. Secure the straight shank fully into the collet or chuck before tightening, and verify tool bit seating and set-screw engagement before operation. Follow applicable shop safety protocols and machine manufacturer guidelines for spindle speed selection based on workpiece material and cutter diameter.
