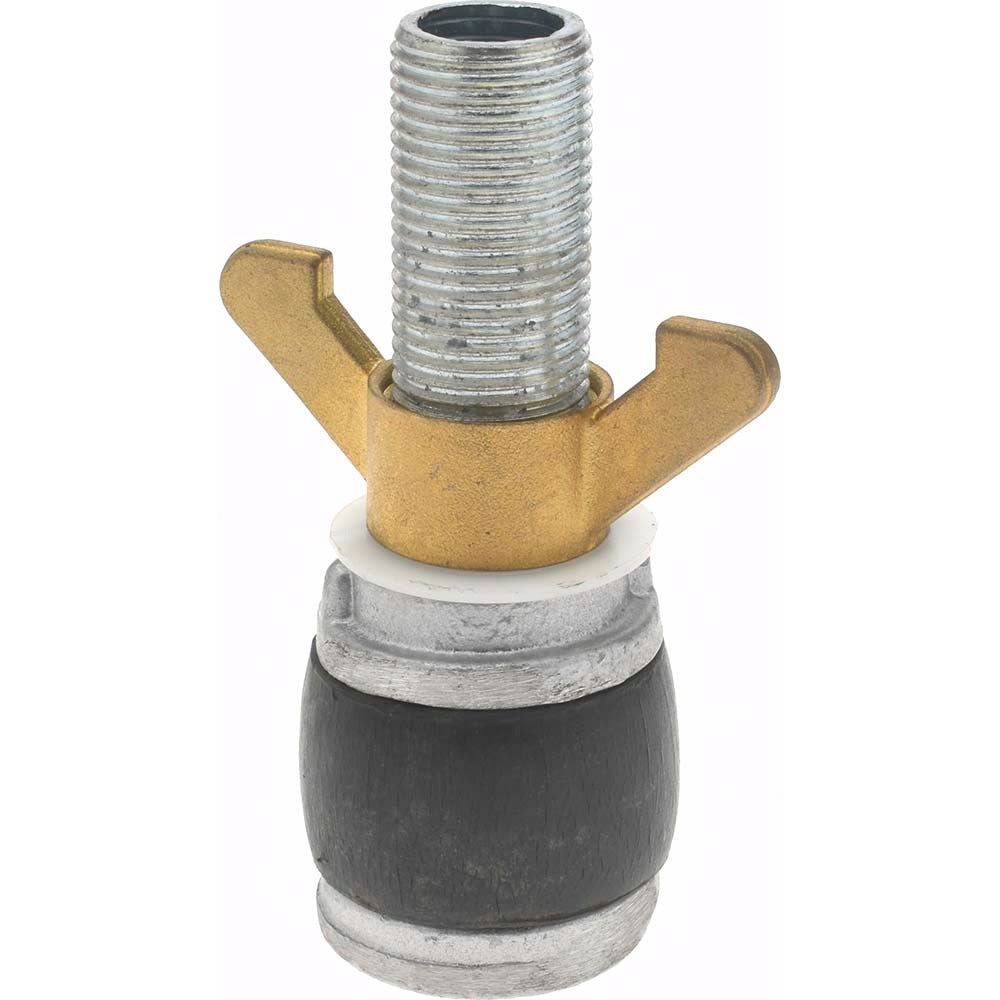

Value Collection AP01.50 Aluminum Expansion Plug

Product Description

The VALUE COLLECTION AP01.50 is an aluminum expansion plug designed to seal pipe openings during pressure testing, system maintenance, or temporary line isolation. The plug inserts in its unexpanded state at 1.420 inches and expands to a seating diameter of 1.889 inches, creating a positive mechanical seal within the pipe bore. It is rated to a maximum working pressure of 9 psi. The stem diameter measures 1/2 inch for use with standard expansion tools. Plumbers, pipefitters, and mechanical contractors use this type of plug during hydrostatic testing, winterization, or when capping inactive lines in both residential and commercial piping systems.

This expansion plug is suited for use in aluminum, PVC, cast iron, and steel pipe where the bore diameter falls within the plug's expansion range. Typical applications include drain, waste, and vent system testing, temporary shutoff during repairs, and end-capping during staged construction. Its aluminum construction makes it appropriate for corrosive or wet environments where ferrous plugs are not preferred.

Key Features

• Expands from 1.420 inches to 1.889 inches for a tight mechanical seal in matching pipe bores
• Aluminum construction resists corrosion in wet and chemically active environments
• Rated to 9 psi maximum working pressure
• 1/2 inch stem diameter is compatible with standard expansion wrenches and drive tools
• Lightweight at 0.5 pounds for easy handling in confined spaces

Compatibility

Designed for use in pipe applications where the internal bore diameter falls within the unexpanded-to-expanded range of 1.420 to 1.889 inches. Verify pipe bore dimensions before installation.

Installation Notes

Installation is performed by a licensed plumber or pipefitter using a standard expansion drive tool on the 1/2 inch stem. Isolate and depressurize the line before inserting the plug. Do not exceed the 9 psi maximum pressure rating during testing. Follow applicable plumbing codes, including IPC and local jurisdiction requirements, for pressure test procedures and allowable test durations.
