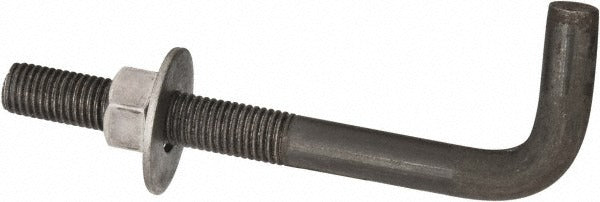

Value Collection ABL0750800 Bent Anchor Bolt 3/4-10 8in

Product Description

The VALUE COLLECTION ABL0750800 is a bent anchor bolt designed for securing structural and mechanical components to concrete or masonry substrates. Manufactured from Grade 2 steel, this anchor bolt features a 3/4-10 thread size and an overall length of 8 inches. The bent configuration provides a mechanical key in the base material, resisting pull-out forces once set. This fastener is installed by licensed tradespeople and contractors working in structural, mechanical, and equipment-mounting applications.

This anchor bolt is suited for light to medium-duty anchoring tasks in residential and commercial construction and equipment installation. Typical applications include securing sill plates, equipment bases, pipe supports, and similar structural elements to poured concrete or block foundations. The 3/4-10 thread accepts standard hex nuts and washers for proper load distribution at the surface.

Key Features

• Bent anchor bolt configuration provides mechanical resistance against pull-out from concrete
• 3/4-10 unified coarse thread for compatibility with standard nuts and washers
• 8-inch overall length suitable for standard embedment depths in concrete foundations
• Grade 2 steel construction meets general-purpose structural fastener requirements

Compatibility

Designed as a general-purpose bent anchor bolt for use with standard 3/4-10 hex nuts and washers in concrete or masonry anchoring applications.

Installation Notes

Installation is typically performed by structural tradespeople or licensed contractors in accordance with applicable building codes. Place the bolt with proper embedment depth before concrete is poured, or set into drilled holes using approved adhesive anchor systems as required by the application. Ensure the threaded end remains clean and protected during pour or curing. Consult applicable local building codes and structural drawings for minimum embedment depth and edge-distance requirements.
