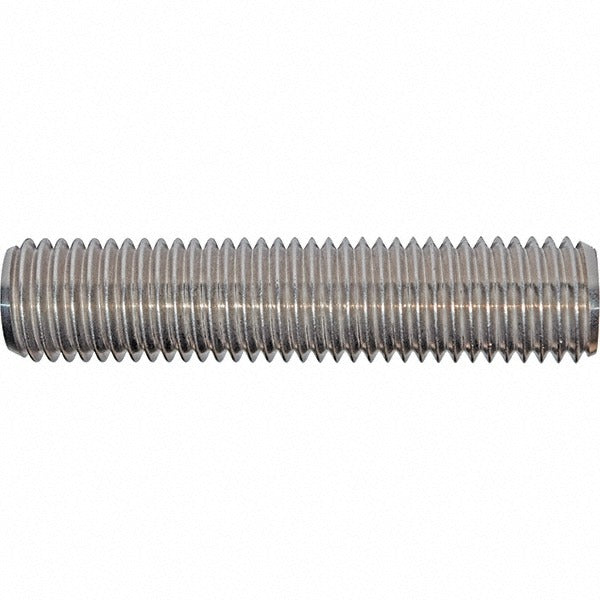

Value Collection AB7STFE0750C575 Fully Threaded Stud

Product Description

The VALUE COLLECTION AB7STFE0750C575 is a fully threaded stud in 3/4-10 UNC thread with a 5.75-inch overall length. Grade B7 alloy steel construction gives this fastener the tensile strength required for high-load structural and mechanical connections. The uncoated plain finish suits applications where secondary coating or plating will be applied on site. Thread fit is Class 2A, the standard external thread tolerance class for general-purpose industrial fasteners. Right-hand thread direction follows standard convention. Licensed tradespeople and maintenance professionals reach for this stud when a continuous-thread configuration is needed on both ends of a bolted joint.

This fully threaded stud is suited for heavy-duty bolted assemblies in industrial, mechanical, and construction applications. Common uses include equipment mounting, flange connections, structural joints, and machinery tie-down situations where a conventional bolt is not appropriate. The Grade B7 material grade is widely specified in pressure vessels, piping flanges, and high-temperature mechanical assemblies. It is installed by millwrights, pipefitters, ironworkers, and maintenance technicians working under ASME or similar structural standards.

Key Features

• 3/4-10 UNC fully threaded profile with 5.75-inch overall length for versatile reach
• Grade B7 alloy steel provides high tensile and yield strength for demanding load conditions
• Class 2A thread fit ensures standard external thread tolerance for broad nut compatibility
• Right-hand thread direction follows universal convention for easy pairing with standard hardware
• Uncoated finish allows field application of plating, coating, or corrosion protection as required

Compatibility

Designed as a general-purpose fully threaded stud compatible with 3/4-10 UNC hex nuts and threaded inserts meeting Class 2B internal thread tolerance standards.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with bolted joint specifications and torque requirements for Grade B7 fasteners. Power down or de-energize and depressurize any system before replacing or installing studs in flange or pressure-boundary applications. Use calibrated torque tooling and follow the applicable ASME, AISC, or plant engineering specification for the joint. Avoid cross-threading during installation, as Class 2A threads are precision-fit and should engage smoothly by hand before applying torque.
