Value Collection A997620 Wire Rope Clip 1/8 in Ss 5 Pack

Product Description

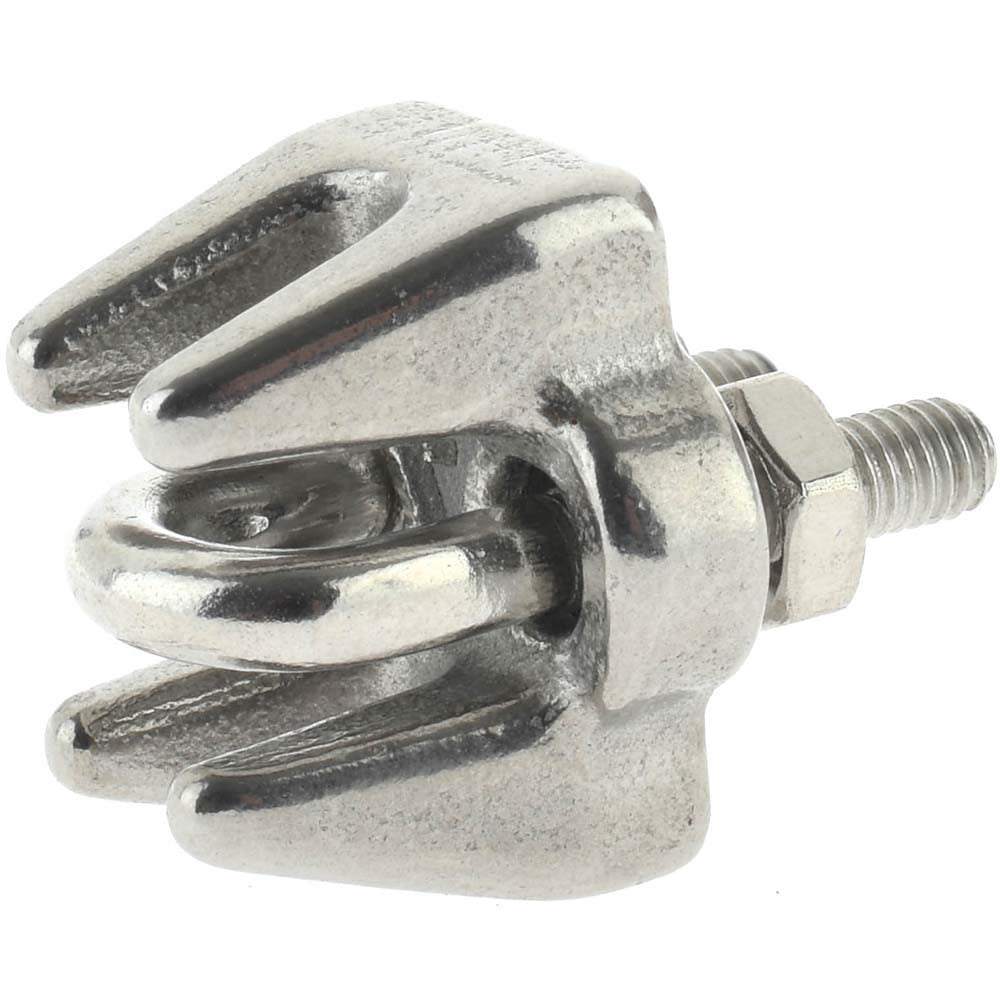

The VALUE COLLECTION A997620 is a stainless steel wire rope clip designed to form secure end loops or dead-end terminations on 1/8 inch diameter wire rope. The U-bolt and saddle construction bites into the rope strands to resist pull-through under load. Stainless steel construction resists corrosion in wet, marine, and outdoor environments. This clip ships in a pack of 5, making it practical for rigging, lifting, and tie-down applications where multiple terminations are needed. Installation requires basic hand tools and follows standard wire rope dead-end practice. Riggers, maintenance mechanics, and industrial contractors are the typical installers.

Wire rope clips in this size range are commonly used for light-duty rigging, cable railings, safety lines, overhead door cables, and equipment tie-downs. The 1/8 inch rope diameter sizing suits small-diameter wire rope assemblies found in both residential and light commercial settings. Stainless steel is the preferred material choice where moisture exposure, saltwater proximity, or chemical environments would degrade carbon steel hardware over time.

Key Features

• Fits 1/8 inch diameter wire rope for precise, rated termination
• Stainless steel construction provides corrosion resistance in harsh or outdoor environments
• Pack of 5 clips supports multi-point rigging and termination jobs from a single order
• U-bolt and saddle design distributes clamping load across rope strands
• Suitable for light-duty lifting, cable rail, and safety-line applications

Compatibility

Designed for use with 1/8 inch diameter wire rope in standard dead-end and loop termination applications across light rigging and cable hardware assemblies.

Installation Notes

Wire rope clips must be installed by personnel familiar with rigging hardware and applicable ASME B30 or similar standards for wire rope terminations. Always apply the saddle to the live end of the rope and the U-bolt over the dead end — never saddle a dead horse. Torque the nuts evenly and re-torque after initial load application to account for rope seating. Do not use these clips as the sole means of support for overhead loads without verifying the rated capacity of the complete assembly.
