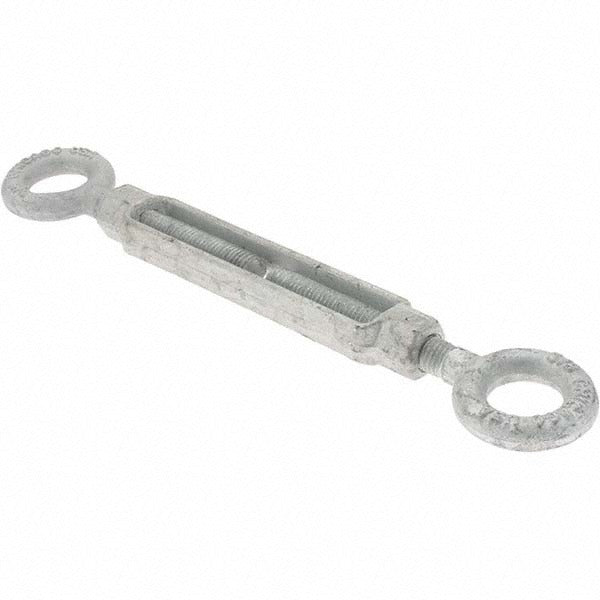

Value Collection A996945 Eye Eye Turnbuckle 3500 Lb

Product Description

The VALUE COLLECTION A996945 is a steel eye-and-eye turnbuckle rated for a 3,500-pound working load limit. It features a 5/8-inch thread diameter and a 6-inch take-up range, allowing for precise tension adjustment in rigging, bracing, and tie-down applications. The closed length measures 13-1/2 inches, making it suitable for installations where overall fitting length matters. Sold in a package of two, this turnbuckle is built from steel construction for durability in demanding environments. Riggers, maintenance mechanics, and contractors are the typical installers for this type of hardware.

This eye-and-eye turnbuckle is used in a wide range of tensioning applications including wire rope assemblies, guy wire bracing, structural tie-backs, and general rigging work. The eye-and-eye configuration accepts hooks, shackles, or threaded rod connections at both ends. It is appropriate for both light commercial and industrial settings where controlled tension adjustment is required. The 6-inch take-up gives installers meaningful adjustment travel to compensate for slack or alignment variation during installation.

Key Features

• 3,500-pound working load limit for medium-duty rigging and tensioning applications
• 5/8-inch thread diameter for compatibility with standard rigging hardware
• 6-inch take-up range allows significant in-field tension adjustment
• 13-1/2-inch closed length suits installations with defined fitting clearance
• Eye-and-eye end configuration accepts shackles, hooks, or looped cable terminations at both ends
• Steel construction for strength and durability in rigging environments
• Package includes two turnbuckles per order

Compatibility

Designed as a standard eye-and-eye turnbuckle for use with 5/8-inch threaded rigging hardware and wire rope assemblies requiring a working load limit of up to 3,500 pounds.

Installation Notes

Installation should be performed by a qualified rigger or mechanic familiar with load-rated hardware and applicable ASME or OSHA rigging standards. Inspect both eye fittings and all mating hardware for damage or wear before tensioning. Never exceed the stated working load limit, and ensure locking nuts or safety clips are used where required to prevent unintentional loosening under vibration or dynamic loading. De-tension the assembly fully before disassembly or adjustment.
