Value Collection A996635 Flat Vent Pull Out Dowel Pin

Product Description

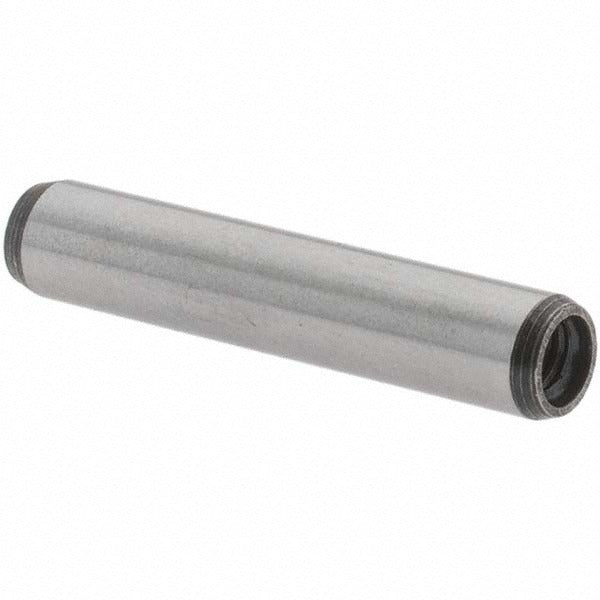

The VALUE COLLECTION A996635 is a flat vent pull out dowel pin used for precise alignment and positioning in mechanical assemblies. Manufactured from alloy steel, this pin measures 6 mm in diameter and 32 mm in overall length. It conforms to DIN 7979D fastener standards, making it a reliable choice for applications where dimensional consistency and material strength are required. One end is rounded and the other end is threaded, allowing the pin to be extracted with a threaded puller tool after installation. Machinists, tool-and-die makers, and maintenance technicians working with jigs, fixtures, and precision machined components are the primary installers.

This dowel pin is suited for use in jig and fixture assemblies, machine frames, and production tooling where repeatable part location is critical. The flat vent groove along the pin body allows air and excess lubricant to escape during press-fit installation, reducing the risk of hydraulic lock in blind holes. It is appropriate for both light-duty and moderate-load alignment applications in manufacturing and industrial maintenance environments.

Key Features

• DIN 7979D standard construction ensures consistent dimensional tolerances for precision fit
• Flat vent groove allows air and lubricant relief during press-fit installation in blind holes
• One rounded end and one threaded end permit extraction using a standard threaded puller
• Alloy steel construction provides strength suitable for jig, fixture, and tooling applications
• 6 mm diameter by 32 mm length sizing fits common metric bore configurations

Compatibility

Designed as an OEM-style replacement or direct-use metric dowel pin for jigs, fixtures, and precision machined assemblies requiring DIN 7979D flat vent pull out style pins with a 6 mm diameter.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a press or mallet with an appropriate driver. Ensure the receiving bore is clean and dimensioned to the correct tolerance for the pin diameter before installation. Apply a light film of oil or assembly lubricant to the pin body before pressing into a blind hole to allow the vent groove to function properly. To remove, thread a compatible puller into the threaded end and extract the pin axially to avoid bore damage.
